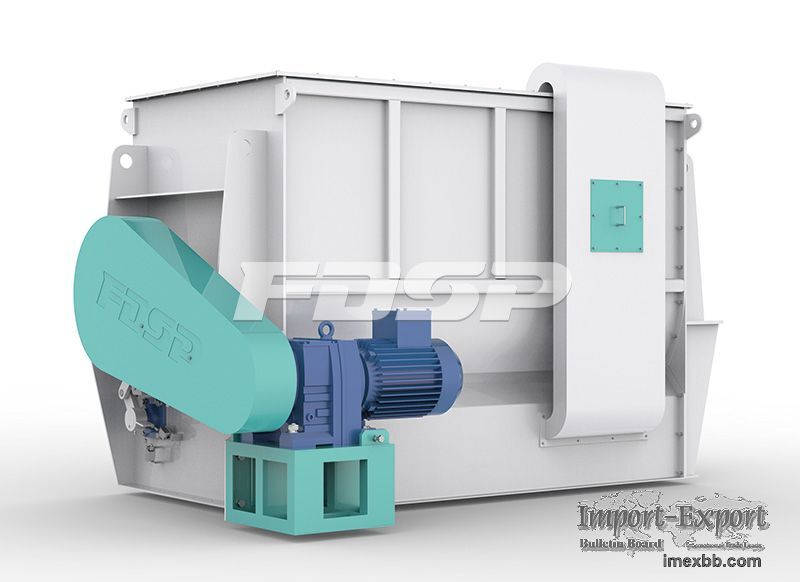

SLHY Series Ribbon Animal Feed Mixing Machine

Features:
The mixing chamber is constituted by twin screw and atomizing system. The
filling seal is adopted for ends of shaft to improve tightness and prevent from
leakage;
Specially designed discharger has big door-opening angle and quick discharging
with little residue;
Good tightness and no leakage;
Pneumatic or Electric driven discharging is uses with correct, stable move and
good tightness.
FDSP ®
Applicable for compound feed plant, premix feed plant, food and flour plants.
Gentle mixing, without deviation and good homogeneity.
Reliable and low residue, convenient maintenance.
Mixing homogeneity CV≤7%, Mixing Time:180~240s.
Chain driving, rigidity design ensures long term operation without trouble.
visit my website:https://www.fdsp-cp.com/feed-machinery/
Model SLHY0.6 SLHY1 SLHY2.5 SLHY5 SLHY7.5 SLHY10
Volume(m³) 0.6 1.0 2.5 5 7.5 10.0
Capacity /batch(kg) 250 500 1000 2000 3000 4000
Mixing Time(min) 5-6 5-6 5-6 5-6 5-6 5-6
Discharging Time (s) 5 5 5 5 5 5
Homogeneity (cv≤%) 7 7 7 7 7 7
Power(kw) 5.5 11 15/18.5 30 37 45

Minimum Order: 1 sets
