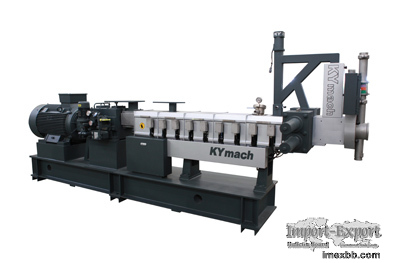

SK53 Twin Screw Extruder

Overview of SK53 Twin Screw Extruder
SK53 mini twin screw extruder can be used in engineering plastics, color
masterbatch, functional masterbatch, blending modification and other
industries.

In order to adapt to the high temperature and high wear resistance of
Engineering plastics, HIP hot isostatic pressing technology is used in the
material selection of cylinder and screw for SK53 twin screw extruder.



Device parameters of SK53 twin screw extruder


Model Motor power (KW) Screw speed (RPM) Aspect ratio Output
(KG/h) Size of main equipment
(Length Mx, width Mx and height M)
SK53 110/160 600/900 36~60 400~700 5.5x 0.8x 1.6

It has the advantages of high wear resistance and corrosion resistance; for
example, when the customer's working formula in PA, PP + glass fiber or carbon
fiber + flame retardant, it is recommended to use high wear resistance material
(SAM10); if the customer's working material not only requires to wear
resistance but also has certain acidity and alkalinity, it needs to consider
using corrosion resistance material (SAM26/39). In view of the lateral forced
feeding of carbon fibers, a special feeding screw design is adopted, which
effectively solves the problem that the material is fluffy and can not be fed

Hot isostatic pressing (HIP) is to place the product in a sealed container and
apply the same pressure in all directions to the product. At the same time,
SK53 mini plastic twin screw extruder machine can be sintered and densified
under the action of high temperature and high pressure. Thermo-isostatic
pressure is an indispensable means and technology for the production of high
performance materials and the development of new materials.

KY is one of professional extruders manufacturers, we provide mini plastic
extruder, twin extruder machine, mini plastic extruder machine, mini extruder
machine and etc. Want to know more? Please contact us.

Minimum Order: 300 sets
