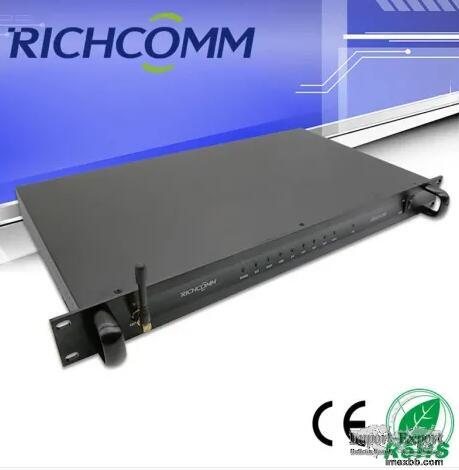

SitemateII

Product Description

Server Environment Monitoring for Small Data Center
Server environment monitoring products enable you to actively keep track of the
problems in your shelf, server room, information centre or anywhere else you
require to safeguard essential possessions. The problems kept an eye on consist
of severe temperatures, humidity, power spikes and surges, water leaks, smoke
and chemical materials. With appropriate environmental monitoring, you look out
to any type of problem that might have a negative impact on your mission-
critical tools. These items can likewise notify you to prospective damage from
human error, hacking or spying fingers.
https://www.richcommdcim.com/product-s , itemateii.html
Overview
Server environment monitoring is specially developed and researched for small
data center, it is based on IP network technology, supports UPS monitoring and
server environment monitoring detection (temperature, humidity, smoke, leakage,
motion, door contact, gas, etc) in one host. SitemateII provides fast interface
visiting and user settings via web browser, once an abnormal alarm happens, it
will rapidly give alarm notifications with email, SMS, sound light, etc, for a
real sense to guarantee 7*24 hours unattended data center.
Product Function

Support advantage encryption protocol such as HTTP, HTTPS, SSL, SSH,
SNMPV1\V2c\V3;

Support telnet, supper terminal, WEB page configuration;

Compatible with multi-brand and multi-type of UPS;

Support to add on 20 pieces of Temp&Humid sensors via RS422/RS485 ports;

With 16 digital input terminals, support to add on dry contact type detectors;

With 5 digital output terminals, support to add on relay output control;

Support 8 analog input signal detect;

Support SNMP trap,E-mail alarm notification;

Support IPV4/IPV6;

Built-in optional GSM Modem, support SMS query or alarm notification;

Support scheduled task(regular self-testing, switch on/off);

Support history events and data record storage;

Comprehensive event handle( including event record and notification);

Comprehensive managing function( data logs, SNTP and task schedule);

Available to work with centralized software.
Technical Parameters
CPU 32-bit ARM926EJ-S core 300 MHz high speed processor(CPU)
RAM 64Mbyte SDRAM Flash ROM 128M byte and Flash
Network Interface 10/100Mbps high speed Ethernet self adaptive
Device Ports 1 RS232 asynchronous serial port;
1 RS422/485 add on port
16 Digit input terminals (0-5V TTL level);
8 Analog input terminals (0 ~ 5V linear level);
5 Digit output terminals (12VDC / 1A).
Browser Support Internet Explore, Netscape or compatible browsers.
SNMP MIB Support MIBII (RFC1213, RFC1315, RFC1316)RFC1628, PPC MIB
Network Protocol TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS,
TFTP, ARP, ICMP, PPP,etc.
LED Indicators PW, M-PW, RUN, DEV, PPP, IPP, WEBS, SNMP, EXT, MODEM, LAN 10/ 1
00M Link/Active
Input Power 220-240V
Frequency 50Hz Power Consumption ≤ 12W
Operating Environment Temperature:0℃~70℃ Humidity:10~85% Software
Upgrade Network upgrade
Other Configuration Real time system clock synchronization
Languages Chinese/English, support OEM other languages.
System Security Provided filtering mechanism based on IP , and system
operation, control
and management of the user ID and password protection.
Safety Certificate CE, FCC

Minimum Order: 100 pieces
