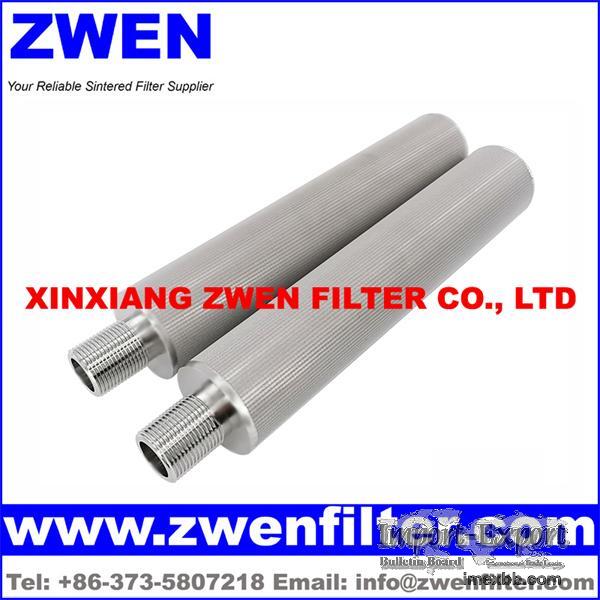

Sintered Mesh Filter Element

Sintered Mesh Filter Element Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Mesh
Filter Rating Range: 0.5 Micron ~ 2000 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,
100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016
mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization

Sintered Mesh Filter Element Feature
1. Sintered mesh filter element has uniform pore size distribution
2. Sintered mesh filter element is good for backwash
3. High mechanical strength
4. High temperature resistance
5. High filter efficiency
6. High corrosion resistance
7. Long service life

Application
Polymers filtration, high temperature liquid filtration, high temperature gases
filtration, steam filtration, catalysts filtration, water filtration, beverages
filtration
