SINOTRUK HOWO N7 New Model 400HP 10 Tires Heavy Duty Truck Tractor 120 Tons

Product Description
SINOTRUK HOWO N7 New Model 400HP 10 Tires Heavy Duty Type 120 Tons Truck
Tractor For Tanzania
Advantage:
1. Using Weichai engine, wearing parts are easy to obtain and there are many
choices.
2. HOWO N7 uses a 400-horsepower high-power engine to better use it in
various situations.
3. Based on the strong and top technical support of China National Heavy
Duty Truck, the trucks are of higher quality and more reliable.
4. China National Heavy Duty Truck has a professional after-sales service
team to provide the most professional guarantee.



Product Parameter



Model ZZ4255V3446B1
Driving model Left Hand Driving
Curb weight ( kg) 9200 KGS
Tow weight(kg) MAX. 120,000KGS
Engine
Made: SINOTRUK

Model: WP12.400E201, 400HP EURO 2 emission standard, 6 cylinder inline,
turbo charging and inter cooling

Fuel Type: Diesel

Displacement (L) 9.726L
Cab HOWO H77L high roof cab, with one sleeper, AC
Transmission
HW19710 SINOTRUK 10 forward and 2 reverse iron steel shell gear box

Nuclearance: 1900Nm

Steering BOSCH power steering with air assistance
Clutch SINOTRUK 430 diaphragm spring clutch
Number of axle 3
Driving axle
HC16, 16T heavy duty type driving axles with drum braking

speed ratio:4.8

Axle-loading(kg) 7000/18000(two axle paralleled)
Front axle VGD95 SINOTRUK 9Tfront axle,with drum braking system
Fifth wheel 3.5inches
Rear track(mm) 1830
front/rear Overhang (mm) 1500/725
Wheel base (mm) 3425+1350
Tires
12.00R20 Radial tire

Number of tire: 10+ 1

Fuel Tank L 400
Approach/departure angle(°) 17/50
Maximum speed(km/h) 101
Dimensions (mm) 7050*2550*3200
others Will be carried out by the factory standards


Detailed Photos

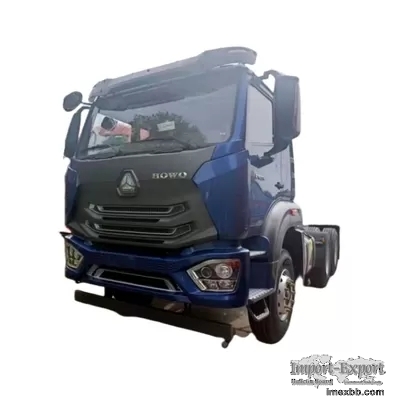

SINOTRUK HOWO N7 New Model 400HP 10 Tires Heavy Duty Truck Tractor 120 Tons
0



SINOTRUK HOWO N7 New Model 400HP 10 Tires Heavy Duty Truck Tractor 120 Tons
1



SINOTRUK HOWO N7 New Model 400HP 10 Tires Heavy Duty Truck Tractor 120 Tons
2
