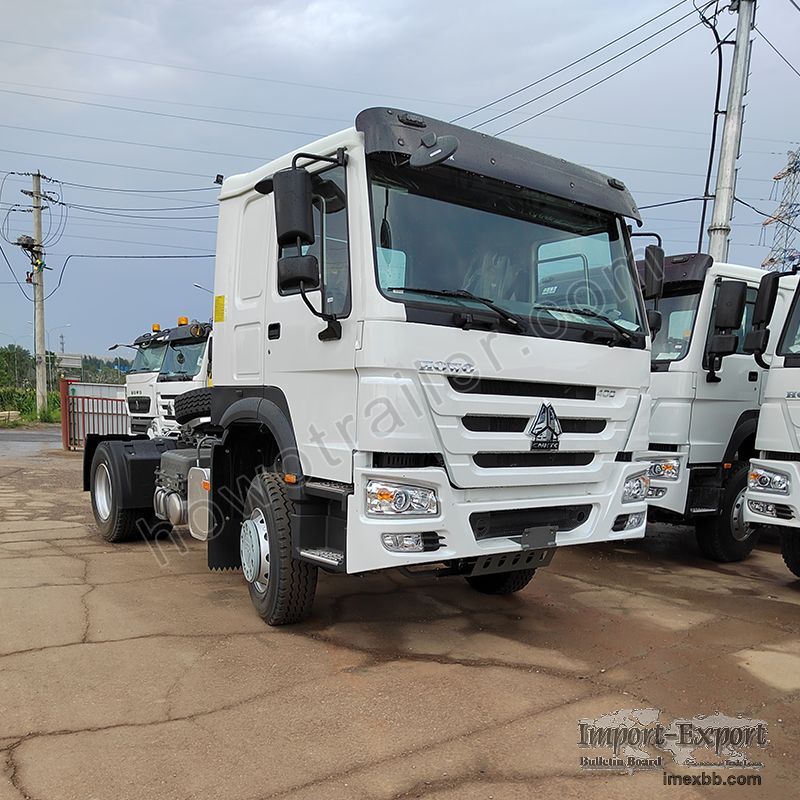

SINOTRUK HOWO 4X2 Tractor Truck 400HP

HOWO series heavy duty tractor truck built a new standard for heavy duty truck
heads，aiming at world advanced heavy duty tractor truck design and
manufacturing technology with incorporation of multi-advanced technologies. It
is at leading position in vehicle appearance，safety，comfortability and
ergonomics，and creates new driving experience on heavy duty tractor truck.
HOWO Tractor head has a variety of driving mode, such as 8*4, 6*4 and 4*2, it
is expert in long-distance transportation featuring lower fuel consumption,
high efficiency and reliability, more comfortable driving cab, more spacious
storage space, faster speed with easier operation, larger loading capacity,
etc. HOWO Tractor truck can perfectly combine these requirements to meet all
your needs on challenging terrains and adverse weather conditions with ease, so
it is widely used to haulage sector for durability and better traction. with
its towing capacity, it is suitable for various applications. The cabin offers
comfort and safety features ensure a secure driving experience.

HOWO 4X2 (6 wheels) Tractor Truck/Truck Head/Tractor Horse, 400HP Technical
Specifications
Cabin HW76 cab, with one sleeper and two seats, damped adjustable driver's
seat, with heating and ventilating system, adjustable steering wheel, air
conditioner
Engine Make: SINOTRUK HOWO
Engine model: WP12.400E201, Euro 2, 400 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission HW19710, 10F & 2R, With HW70 PTO
Steering ZF power steering, model ZF8098, hydraulic steering with power
assistance
Front Axle VGD95, 1*9,000KG, Steering with double T-cross section beam
Rear Axle HC16, 1*16,000KG, Pressed axle housing, central single
reduction with hub reduction and with differential locks between wheels and
axles.
Propeller Shaft Double universal joint propeller shaft with gear-shaped
coupling flange
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and
reinforced subframe all cold riveted cross members
Front suspension: 3 semi-elliptic leaf spring, hydraulic telescopic double-
action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on
front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and
reverse light
Tires 315/80R22.5 or 12R22.5 tires, with one spare tire.
Fuel Tank 400L/400L+600L
Fifth Wheel 50# or 90# optional
Overall Dimension 6900*2550*3400 mm (estimated)
