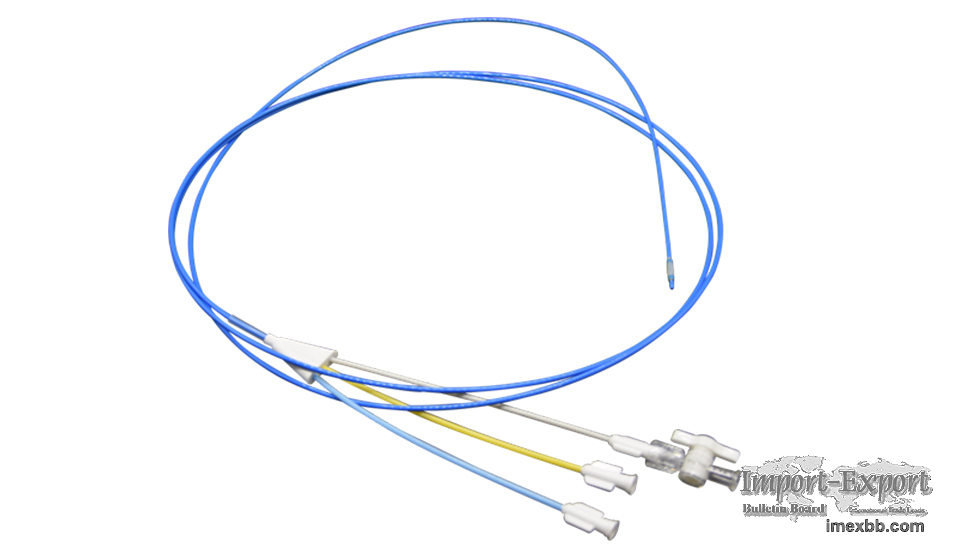

Single-use Stone Extraction Catheter

Biliary stone extraction balloon catheter is used for endoscopic removal of
biliary stones.

Features of Single-use Stone Extraction Catheter
High-quality latex increases the durability and reduces the possibility of
balloon bursting.
“Squared shoulder” balloon is designed to facilitate stone removal.
Three distinct diameters of balloon could cover widely clinical requirements.
Injection-above and injection-below options are provided according with
physician's preference to facilitate the procedure.
Tapered catheter design improves pushability.
Two radiopaque markers can be identified clearly under X-ray.
Different colored channels assist to identify easily.

Specification of Single-use Stone Extraction Catheter

REF Structure Balloon Diam.（mm） Minimum Working Channel（mm）
Working Length（mm） Compatible Guidewire Description Unit/box
QS-1A00 OTW 8.5/11.5/15 2.8 2000 0.035” Triple lumen,
Injection-above 1
QS-1B00 OTW 8.5/11.5/15 2.8 Triple lumen,
Injection-below
QS-2A00 OTW 11.5/15/18 3.2 Triple lumen,
Injection-above
QS-2B00 OTW 11.5/15/18 3.2 Triple lumen,
Injection-below
QS-300 OTW 8.5/11.5/15 2.8 Dual lumen
QS-400 OTW 11.5/15/18 3.2 Dual lumen


Leomed is a professional company of manufacturing high quality endoscopy
products.

Minimum Order: 15000 pieces
