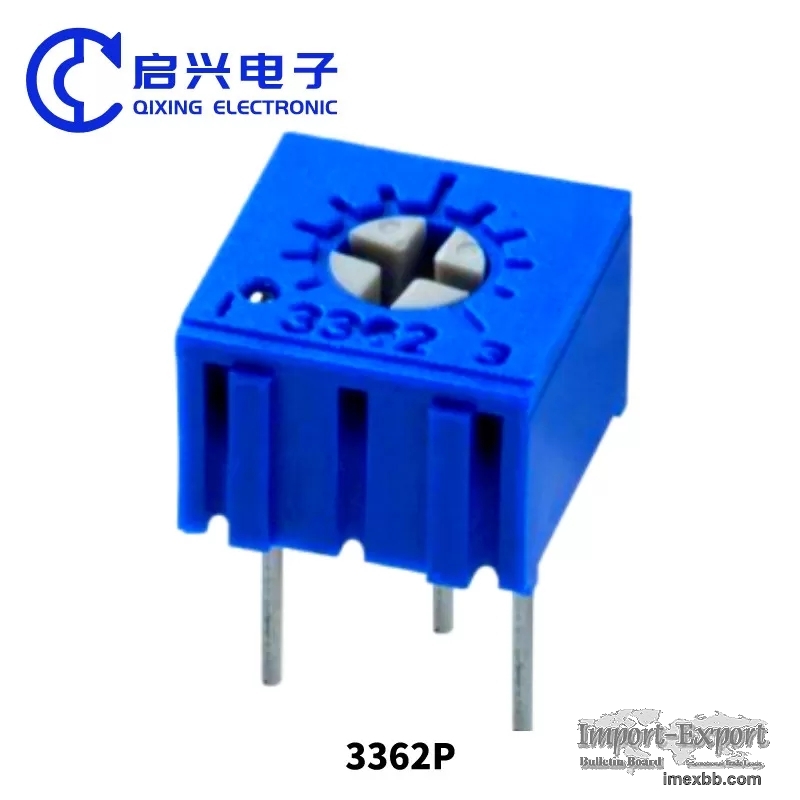

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot

3362P Single Turn Metal Glass Glaze trimpot 10k trimmer potentiometer



product name:

3362 series single turn metal glass glaze preset Potentiometer

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot 0

product description:

3362 series metal glass glaze preset Potentiometer is a single turn
adjustable Potentiometer, metal ceramic Potentiometer, micro package, and
the rotor is designed for the automatic adjustment interface of the machine;
Sealed, capable of withstanding harsh environments and immersion cleaning;
Built-in board bracket and multi wire brush can effectively reduce contact
resistance changes

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot 1



Product Features:

The 3362 Series Metal Glass Glaze Trimmer Potentiometer is an adjustable
electronic component that uses glass glaze as a resistive material with high
accuracy and stability. Small dimensions, rated power of 0.25W, effective
stroke of 260°, suitable for some small electronic equipment adjustment.
The 3362 glass glaze pre-regulator has the characteristics of high
reliability and long life, and is suitable for some equipment that needs to
work stably for a long time.

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot 2

Product size:

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot 3



Specification parameters:



Electrical Characteristics Range of nominal resistance 10Ω~5MΩ
Resistance tolerance
±10%
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Withstand voltage
500V (DC or AC peak value)
Effective electrical travel
≥200°



Environment Characteristics
Rated power 0.25W ( 300V max)
Temperature range
-55°C~+125°C
TCR
±250×10-6/°C
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles) ΔR≤±2%R,
ΔUab/Uac≤±2%R
Climate category (IEC68-2-2)
ΔR≤± (5%R+0.1Ω),Insulation Resistance
≥100MΩ
Electrical endurance (0.25W, 1000h)
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics Total mechanical travel 260°±10°
Starting torque
≤20mN.m
Stoper torque ≥50mN.m
Standard package
50 pcs /tube


application area:​

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot 4

The 3362 singleturn trimmer potentiometer can be used in a variety of
electronic devices such as audio amplifiers, filters, frequency meters, etc



product catalog:

Single Turn Metal Glass Glaze 10k Trimmer Potentiometers 3362p Trimpot 5

There are two types of glass glaze pre adjustment potentiometers: multi turn
micro adjustment potentiometers and single turn micro adjustment
potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299
series for multi turn metal glass glaze pre adjustment potentiometers. There
are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for
single turn micro adjustment potentiometers
