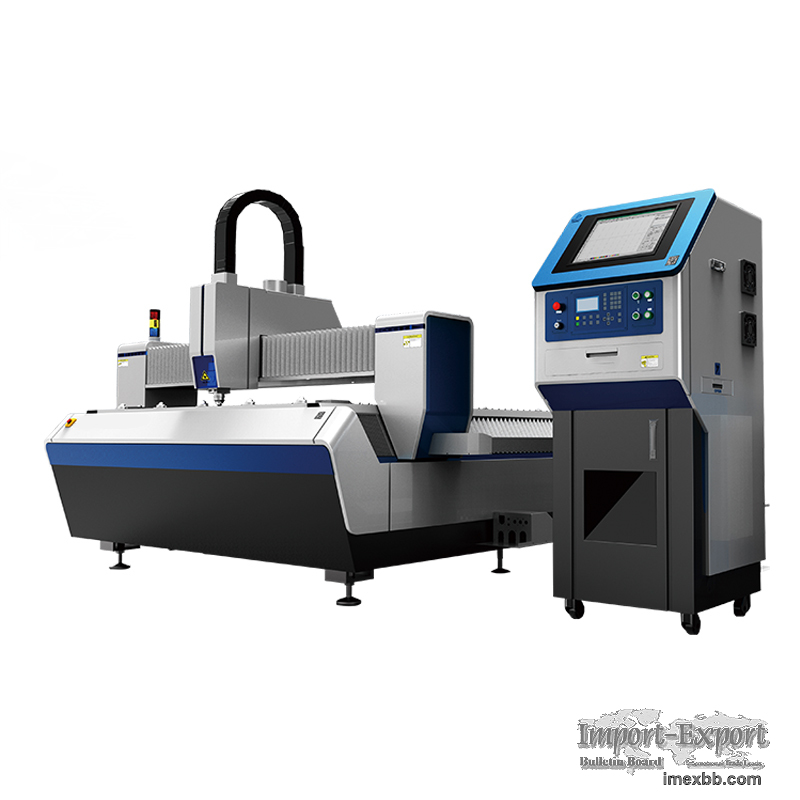

Single Table Fiber Laser Cutting Machine

This single table laser cutting machine model design has won the Red Star
Award. It has been launched for many years and has always been recognized by
the majority of users. It has stable performance and high precision. The German
brand reducer is used to ensure the high-speed start and stop of the machine.
The double-drive rack and rack transmission system guarantees performance.
Single Table Laser Cutting Machine Features
1. Single Table and Small Footprint: Unlike others double-platform cutters,
the single-platform structure has a smaller footprint.
2. The beam body adopts an integrated tensile beam, and the aviation aluminum
lightweight gantry design realizes lightness and at the same time meets the
rigidity requirements. The high-speed running inertia is small, the speed and
acceleration can be switched freely, the action response is sensitive, and the
control is precise.
3. The dust removal channel and the cutting area adopt a partition dust removal
design, and the smoke is accurately removed as the machine moves. Equipped with
a large air volume dust removal and filtration system, it can filter out
harmful gases, smog, and dust thoroughly, which is green and environmentally
friendly.
4. All electrical components are built in the control cabinet. The best dust-
proof design can improve the life of electrical components. An air-conditioning
cabinet is installed outside the control cabinet, which can automatically
maintain the temperature. In summer, it can effectively prevent damage to
components due to excessive temperature.
Single Platform Laser Cutting Machine Applications and Industries
Material application: 0.5-30mm carbon steel plate, 0.5-20mm stainless steel
plate, galvanized plate, cold-rolled plate, silicon steel plate, titanium
alloy, manganese alloy, 0.5-12mm aluminum alloy plate, 0.5-8mm brass and copper
and other metal materials.
Mainly used in automobiles, ships, construction machinery, agricultural
machinery, textile machinery, metallurgy equipment, furniture, kitchen
utensils, household appliances, metal crafts, hardware tool processing,
decoration engineering, advertising signs, rice metal processing and other
industries.
You can find more information on our web, so please take a look.
