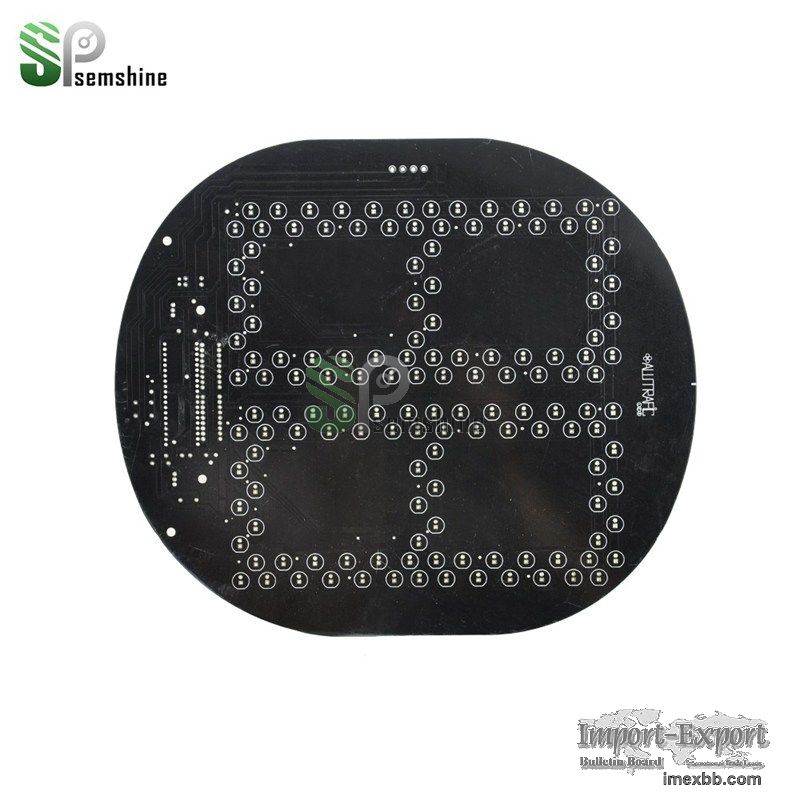

Single side Aluminum-PCB

Double-sided aluminum PCB are widely used in various electronic products, and
comply with ROHS and REACH specifications
single side aluminum-pcb wholesale
PCB description:
Model Number: aliuminum pcb
Place of Origin: Shenzhen, China
Brand Name: SEMSHINE
Base Material: Aluminum high TG
Layers: 1L
Copper Thickness: 1oz
Board Thickness: 0.3mm
Min. Hole Size: 0.08mm
Min. Line Width: 2 Mil
Min. Line Spacing: 0.1um(3 Mil)
Surface Finishing: ENIG
Color: Black Solder mask and White silkscreen
ltemAluminum substrate specifications:
Item Unit Specification Test condition
Insulation thickness pm Max Min 200
60 一
Solder resistance (288°C) Sec. Min 600 IPC-TM-650 3.10.1.12
Thermal shock 288eC*10,,/cycle Min 6 Times IPC-TM-650 2.4.13.1
Peel strength (Normal status) Ib/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume resistivity (Normal status >E+14) Q • cm   >1015 IPC-TM-
650 2.5.17.1
Surface resistivity (Normal status >E+12) Q — >1013 IPC-TM-
650 2.5.17.1
Dielectric constant       IPC-TM-650
1 MHz Normal status 一   6.12 2.5.5.3
2.5.5.5
1 GHz Normal status     5.16 2.5.5.6
Dissipation Factor       IPC-TM-650
1 MHz Normal status     0.0252 2.5.5.3
2.5.5.5
1 GHz Normal status     0.0164 2.5.5.9
Water absorption %   0.2 IPC-TM-650 2.6.2.1
Thermal conductivity
(measured on insulation layer only) W/m°C   3.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg °C   150 IPC-TM-650 2.4.24
Td °C   420 TBD (5wt% loss)
MOT (RTI) °C   130 UL 746B
CTI (Comparative Tracking Index) V   >600 (PLC=0) UL746E
DSR
 Application Areas for Aluminum PCB Fabrication:
Auminum printed circuit sheets are among the most broadly and ordinarily
utilized circuit sheets? The application areas for aluminum PCB board includes:
1. LED backlight module
2. LED street light & LED sign light
3. Outdoor lighting
4. Car lighting
5. Power converter
6. Motor Controller
 Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation

Quality control:
1. Supplier Evalustion and Ranking
2. Contact Appraisal
3. Pre-production Arrangement
4. Raw material Inspection
5. Control in Manufacturing
6. Test of finished products

Why choose SEMSHINE for your supplier.
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation

Minimum Order: 1 square metres
