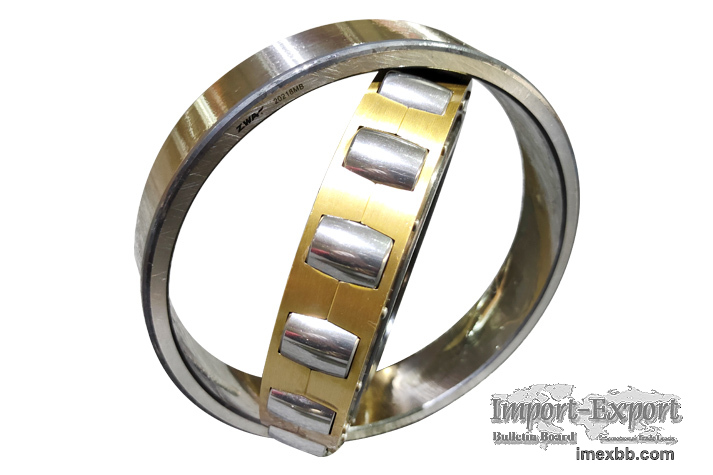

Single Row Spherical Roller Bearing

Single row spherical roller bearing are self-retaining radial roller bearings.
They also belong tp s;elf-aligning bearings. Benefit from the concave raceway
on the outer ring, they are able to compensate the static and dynamic angular
misalignment under certain limits. Inner ring is equipped with two fixed ribs
and a formed raceway. The rollers are guided between the two inner ring ribs.
Solid cages from ZWA single-row spherical roller bearings are mainly brass
ones. ZWA offered two bore types for single-row spherical roller bearings, one
is cylindrical bore and the other is tapered.

Rolling elements in single-row spherical roller bearings contact with the
raceway in line. With this feature, the bearings are able to bear very high
radial capacity loads and relatively low axial capacity load. Because of the
concave raceway on the outer rings, single-row spherical roller bearings are
able to adjust the angular misalignment.

ZWA's single-row spherical roller bearings have served the customers well. Its
production range is from the inner ring 50mm to 200mm. With its reliable
bearing quality and after-sale service, ZWA bearings have assisted the
customers to realize the following goals:

Reduce the cost

Increase productivity

Keep the sustainability

Protect the environment

Besides the regular single-row spherical roller bearings, ZWA is also able to
customize the bearings for the customer based on the special working
conditions. If you are looking for a substitute for world named-brands or you
plan to reduce the cost with cost-effective bearings suppliers, ZWA will be
your right choice. Besides professional bearing manufacturing experience, ZWA
also offers 7/24 service to the customers. On-site service is also available
upon request.

Features of single-row spherical roller bearings

Adjust the angular misalignment

Bear High rotating speed

Bear both pure axial or radial loads

Bear both high rotating speed and high axial loads working

Application of single-row spherical roller bearings

Steel or metal process, Common industry .

As a professional bearing industrial pte ltd, ZWA Bearings is able to provide
you with both high-quality types of ball bearings and roller bearings and
complete the after-sale service. ZWA is one of the leading roller bearing
manufacturers in china. We focus on supporting our customers with high quality
bearing and roller to ensure their problem-free and cost-optimized production.
