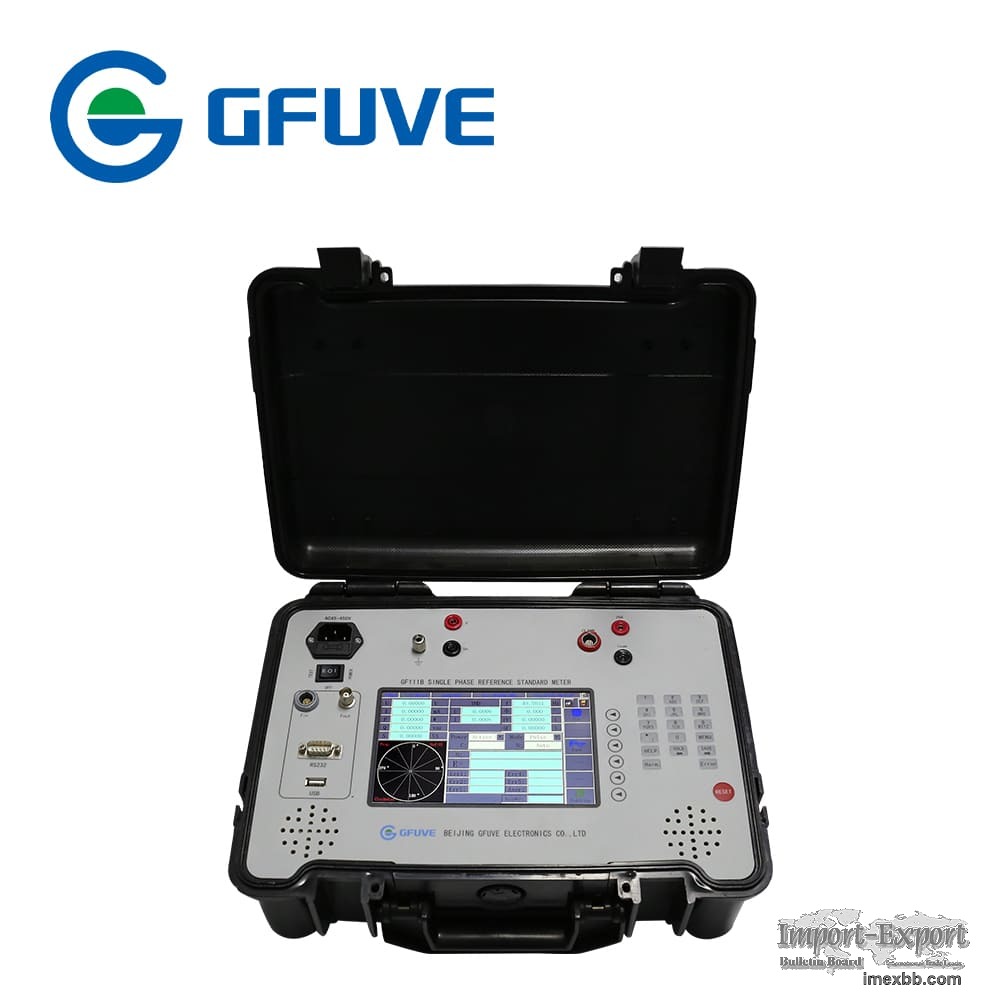

Single phase energy meter calibrator GF111B GFUVE, R&D lab field portable

GF111B single phase reference energy meter with 100a clamp on ct is the latest
product launched by our company after extensive visits to users and drawing on the
advantages of similar products at domestic and abroad. The measurement part of the
product adopts high-speed A/D converter and DSP for digital processing technology,
which greatly improves the accuracy and stability of measurement. The central
processing part adopts 32-bit ARM embedded technology, which makes the instrument
have novel interface, rich functions, clear and simple operation and stable
performance. it has not only advantages of light weight, portable structure, high
precision, high performance, powerful function, original interface, ease-to-use,
but also work stability. It can measure U, I, P, Q, S, E, frequency, power factor,
phase angle, harmonics etc. Accuracy class: 0.04. The GF111B portable single phase
reference meter can be widely used in fields of electric energy measuring,
electric energy laboratories and other relevant industry, not only in laboratories
but also at the industrial field.

Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF111B
Accuracy: 0.04%, 0.05%, 0.1%
Power supply: 45-450V AC, 50/60Hz
Voltage range: 0-576.000V
Voltage error: ±0.02% (40V-560V) ±0.05% (5V-40V)
Current error: ±0.02% (25mA-30A) ±0.04% (1mA-25mA)
Pulse Output channel: 1
Energy constant: 1-9999999
Pulse ratio: 1:1
Pulse Output level: 5V
Weight: 3 kg

Minimum Order: 1 sets
