Single Pass Diamond Honing Tools

This single honing tools als called as one time honing tool,only for some
accuary honing requirement,can have several of tool together used in
process,then you will get finally diameter you want.

Diamond honing tools are divided into adjustable fixed honing knives and
adjustable floating honing knives. They are an advanced tool for processing
various high-precision workpieces. They have high cutting efficiency, long
working life, high precision and good surface roughness. Features. According to
the different diamond particle size, it can be used for rough hinge, fine hinge
and fine grinding. The product is suitable for inner hole honing and cutting of
refrigerator, air conditioner compressor cylinder hole, piston hole, nozzle oil
pump, hydraulic valve, motorcycle, automobile engine block, gear, powder
metallurgy parts, super hard parts, etc.

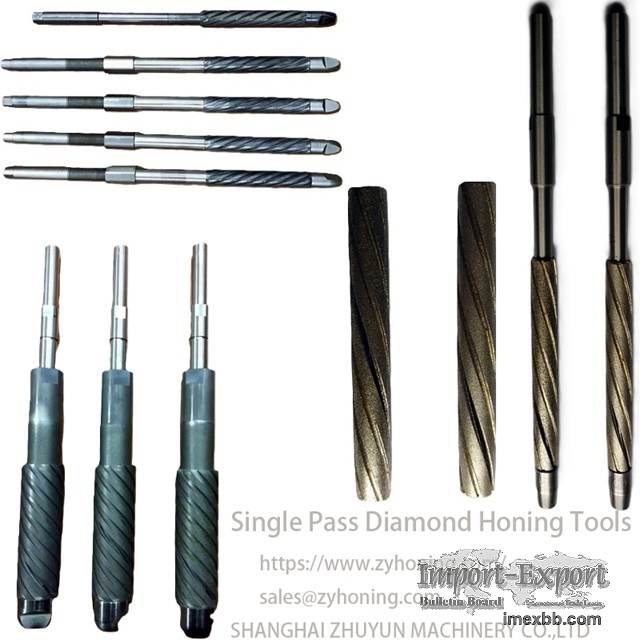

Single Pass Diamond Honing Tools, Honing Mandrels for Progressive Honing,
Single stroke Honing



Honing improves and guarantees bore geometry accuracy and finish after
operations such as machining, heat treating or chucking.



Corrects the following conditions:

Out-of round, Taper, Boring Marks, Chatter Bell Mouth, Undersize, Barrel
Shapes, Rainbow, Misalignment, Waviness. Additionally, cuts all materials,
ferrous and nonferrous



Progressive Honing

The progressive honing sequence is very simple and does not require the
presence of any skilled operators, it consists of a number of vertical honing
tools, combined with a horizontal table which index/rotates under the spindles.



Progressive Honing Sequence

Each honing tool is preset to a progressively larger diameter, and as the
workpiece passes through the machine's cycle it has its diameter increased in
size by each spindle in turn. Each honing tools passes through the bore one
single time only. At each pass the tool removes a specific quantity of material
and the bore diameter is progressively increased, calibrated and finally
finished step by step.



According to the material, the stock removal, the surfance finish and the
required geometry, the honing range can include 1 to more than 10 honing tools.



Constant quality of the bore

Cylindricity<0.01

Surface finish<0.05

Short cylcle time

Process reliability,

Low workpiece cost.



Application areas:

Hydraulic valves, distribution valves, Gears, ABS, brake cylinder,
supercharger, rocker arms, connecting rod, crankcase etc.
