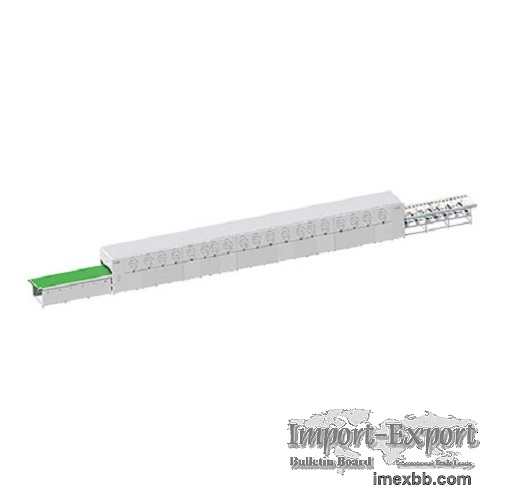

Single-layer & Three-chamber Solar Panel Laminator

Overview
Single-layer & three-chamber solar panel laminator has a loading stage, two
heating laminating stages, one cooling laminating stage, and an unloading
stage.

Basic Specification of Single-layer & Three-chamber Solar Panel Laminating
Machine

Item Spec
Lamination : 2700mm×7400mm
Open height : maintenance height 300mm/working height100mm
Laminating Chamber Thickness : ≥30mm
Heating Plate Thickness : ≥55mm
Control Mode : Touch Screen
Temperature Control : PID intelligent Control
Heating Method : Oil heating
Power : AC380V 50Hz 3-phase 5-wire
Heating Mode : Oil Heating
Power Supply : AC380V 50Hz 3-phase 5-wire
Total Power : 219KW
Running Power: 110KW
Temperature Uniformity : ±2℃
Temperature Range : RT--180℃
Compressed Air Flow(max) : 3600/min
Compressed Air Pressure : 0.6MPa—0.8MPa

Consumable Parts
No. Name Specification Maintenance Cycle
1 Heating oil YD320 ≈1 year
2 Silicone membrane See layout ＜3000 times
3 Silicone strip Each chamber：φ18 ＜3000 times
4 Silicone strip Each chamber：φ8 ＜3000 times
5 Upper chamber Teflon cloth See layout ＜3 months
6 Under chamber Teflon cloth See layout ＜3 months

More kinds of solar panel lamination machine, please visit our website.

If you have needs to buy a photovoltaic module laminator, please leave us a
message.
