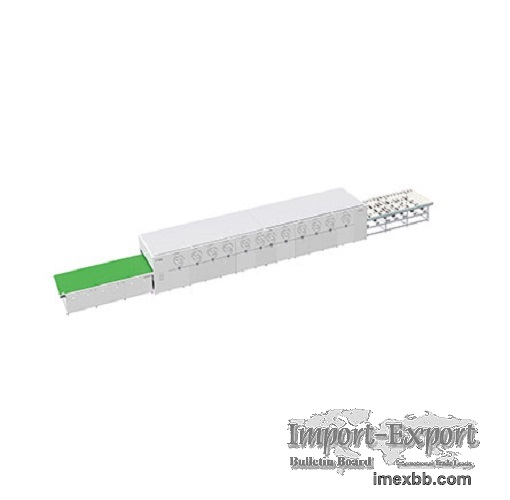

Single-layer & Double-chamber Solar Panel Laminator

Overview
Single-layer & double-chamber solar panel vacuum laminator has one loading
stage, one heating laminating stage, one cooling laminating stage, and one
unloading stage.

Vacuum System and Heating System of Single-layer & Double-chamber PV Module
Laminator
Vacuum System

The main component of the vacuum system is the EBRO valve. The upper chamber
inflation speed is adjustable.

This system is intelligently controlled by a solenoid valve and PLC, touch
screen operation and data display, and equipped with a mechanical vacuum
pressure gauge and vacuum pressure sensor to display and monitor the vacuum in
the chamber in real-time.

The lamination stage is also equipped with a Pirani meter to more accurately
display and monitor the vacuum state of the laminating stage.

Heating System

The heating plate adopts the processed mesoporous plate, and the flatness is ≤
250um/㎡. The heating medium is heating oil.

The entire heating system (including the hot oil pipeline) is fully insulated,
which greatly reduces heat loss and saves energy.

The selected manufacturer of the thermal oil furnace has the national TS
qualification, the performance is safe and reliable.

Equipment Configuration of Single-layer & Double-chamber PV Module Laminator
Main components:

Loading stage

First laminating stage

Second laminating stage

Unloading stage

Vacuum pumps

Heating station

Solar Panel Vacuum Laminator Benefits
Improved Quality: A solar panel vacuum laminator creates a vacuum between the
layers of material being laminated, which helps to remove any air bubbles and
ensures a more consistent lamination process. This results in higher-quality
laminates with fewer defects.

Higher Efficiency: A solar panel vacuum laminator can operate at higher speeds
than other types of laminators because it requires less time to remove air
bubbles between the layers of material being laminated. This leads to increased
efficiency and higher production rates.

Lower Material Waste: The use of a solar panel vacuum laminator can
significantly reduce material waste because it requires fewer attempts to
achieve a high-quality laminate. This is due to the ability of the vacuum to
remove air bubbles, reducing the need for rework or scrap materials.

Improved Safety: solar panel vacuum laminators are typically designed with
safety features such as interlocks and guards to ensure safe operation. They
also reduce the risk of explosion or fire hazards during the lamination
process.

Increased Flexibility: A solar panel vacuum laminator can handle a wider range
of materials, including thinner and more flexible materials, which can increase
the range of solar panel designs that can be produced.

For more information about solar laminator machine and solar laminator machine,
please feel free to contact us!

Minimum Order: 1 sets
