Single-layer & Double-chamber Solar Panel Laminator

Overview

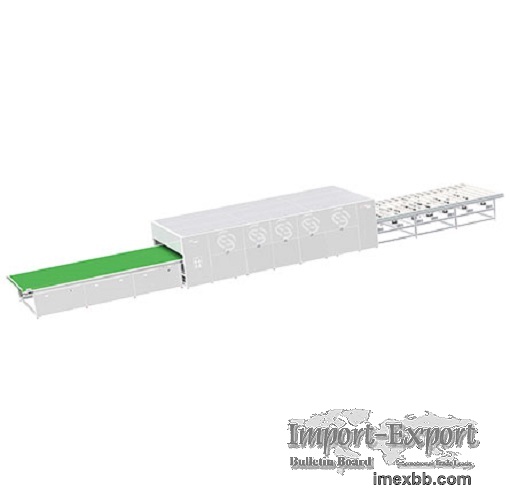

Single-layer & double-chamber solar panel laminator has one loading stage, one
heating laminating stage, one cooling laminating stage, and one unloading
stage.

Vacuum System and Heating System of Single-layer & Double-chamber PV Module
Laminator
Vacuum System

The main component of the vacuum system is the EBRO valve. The upper chamber
inflation speed is adjustable.

This system is intelligently controlled by a solenoid valve and PLC, touch
screen operation and data display, and equipped with a mechanical vacuum
pressure gauge and vacuum pressure sensor to display and monitor the vacuum in
the chamber in real-time.

The lamination stage is also equipped with a Pirani meter to more accurately
display and monitor the vacuum state of the laminating stage.

Heating System

The heating plate adopts the processed mesoporous plate, and the flatness is ≤
250um/㎡. The heating medium is heating oil.

The entire heating system (including the hot oil pipeline) is fully insulated,
which greatly reduces heat loss and saves energy.

The selected manufacturer of the thermal oil furnace has the national TS
qualification, the performance is safe and reliable.

Equipment Configuration of Single-layer & Double-chamber PV Module Laminator
Main components:

Loading stage
First laminating stage
Second laminating stage
Unloading stage
Vacuum pumps
Heating station

Solar Panel Vacuum Laminator Benefits
Improved Quality: A solar panel vacuum laminator creates a vacuum between the
layers of material being laminated, which helps to remove any air bubbles and
ensures a more consistent lamination process. This results in higher-quality
laminates with fewer defects.

Higher Efficiency: A solar panel vacuum laminator can operate at higher speeds
than other types of laminators because it requires less time to remove air
bubbles between the layers of material being laminated. This leads to increased
efficiency and higher production rates.

Lower Material Waste: The use of a solar panel vacuum laminator can
significantly reduce material waste because it requires fewer attempts to
achieve a high-quality laminate. This is due to the ability of the vacuum to
remove air bubbles, reducing the need for rework or scrap materials.
