SIMCOM SIM7100A CAT3 4G TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS PCIE module

SIMCom presents an ultra compact and reliable wireless module SIM7100A
which is based on Qualcomm MDM9215 multiple-mode LTE platform. SIM7100A is
a complete multi-band LTE /WCDMA/GNSS module designed with very powerful
processors integrating application core:Cortex™ A5(550MHz),three QDSP6
cores (Up to 500Mhz), allowing customer to benefit from small dimensions
and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART,
USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability
like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides
much flexibility and ease of integration for customer’s application.

General features

* Quad-Band LTE-FDD B2/B4/B5/B17
* Dual-Band UMTS/HSDPA/HSPA+ B2/B5
* Control Via AT Commands or Gobi API
* Supply voltage range: 3.4V~ 4.2V
* Operation temperature: -40℃ to +85℃
* Dimension: 30*30*2.9mm
* Weight: 5.8g
* LTE-FDD/Rel-9 Cat3
* HSPA+ DC-HSPA+,Rel-10 HSPA+
* GNSS gpsOne Gen 8B;standalone;assisted,XTRA

Specifications for Data transfer

* LTE
- Uplink up to 50Mbps,
- Downlink up to 100Mbps

* HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps

* UMTS
- Uplink/Downlink up to 384Kbps

* CSD- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call



Other features

* USB Driver for Microsoft Windows 2000/XP/Vista/7/8
* USB Driver for Windows CE/Mobile
* USB Driver for Linux /Android
* RIL supporting for Android/Windows CE/Mobile
* Automatic installation
* Linux API SDK
* Firmware update via USB
* TCP/IP/IPV4/V6 Multi-PDP,MT PDP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
* DTMF
* Gobi SDK to the Win7/Win8/Linux
* MBIM to Win8
* Source code of the PC manager of the device for reference


Interfaces

* USB 2.0
* UART
* SIM card
* SPI
* I2C
* Constant current sink
* GPIO
* ADC
* PCM*
* SDIO

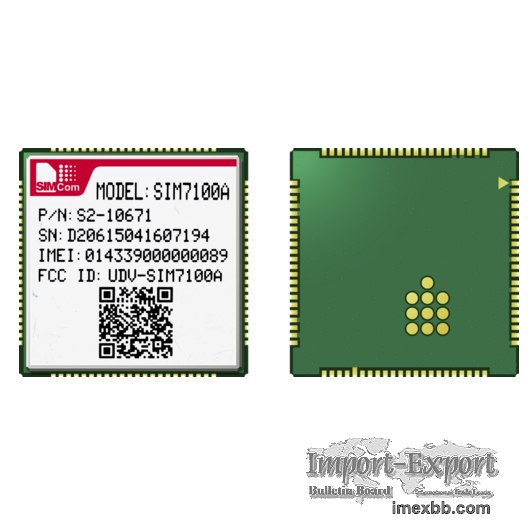

Click to Enlarge
