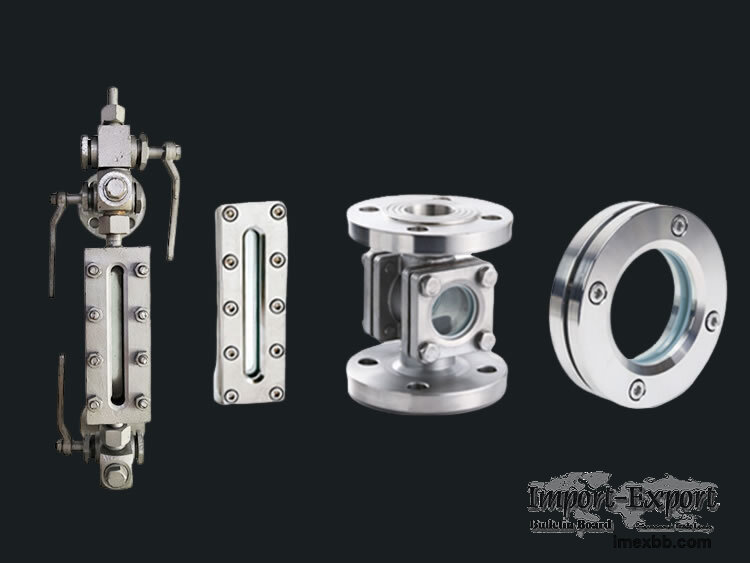

Sight Glass Type Level Gauge

Glass Plate Level Gauge, also known as Sight Type Glass Level Gauge

Glass Plate Level Gauge is a vital instrument, extensively employed across
various industries to indicate or measure the liquid level within tanks,
vessels, or containers. Coming in three types – transparent, reflex, and sight
glass – this versatile gauge offers clear and direct readings, significantly
enhancing operational efficiency and safety.

Working Principle
The working principle of the Glass Plate Level Gauge is simple yet effective.
It operates based on the fact that liquid inside a container seeks its own
level. The gauge comprises a transparent glass plate secured on one or more
front windows of a machined metal body, creating a sealed viewing portal. In
operation, the height of the liquid within the container can be seen directly
through the transparent glass plate, facilitating an accurate level reading.

Applications
Glass Plate Level Gauges are pivotal in industries where maintaining specific
liquid levels is crucial for safe and efficient operations. These sectors
include, but are not limited to, chemical processing, power generation, oil and
gas, and food and beverage production. The gauge can withstand varying
pressures and temperatures, making it suitable for a broad range of
applications.
