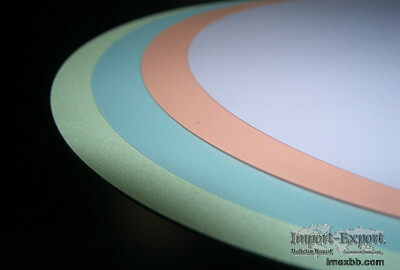

SiC Lapping Film

GRISH Silicon Carbide Lapping Film is coated with precisely graded silicon
carbide powder on the high strength polyester backing to provide a uniform,
consistent finish. Available in 1-30 μm grades, with or without PSA (Pressure
Sensitive Adhesive) backing.

Specifications
Mesh：600, 1000, 1200, 2000, 3000, 4000, 8000
Particle size/µm: 30, 16, 15, 9, 5, 3, 1
Remark: Customizations are available upon requests.

Application:
1.For Optical fiber connector cutting Angle, coarse, medium and fine grinding;
2.Optical lens, optical crystal, LED, LCD grinding and polishing
3.Polishing of magnetic head and hard disk
