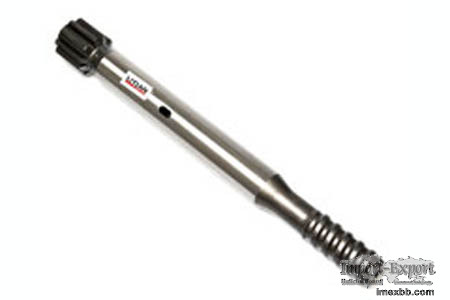

Shank Adapter

Shank adapter, the role of this shank rod in rock drilling is to directly
bear the impact energy and torque of the rock drill, and is used to transfer
the energy from drill rig to drill rod. One end of the shank adaptor is
connected to drill rig, and another end is connected to drill rod, so that
the energy of drill rig can be transmitted to drill bit, and finally achieve
the purpose of drilling.

The specification and hardness of the shank adaptor have a great influence
on the rock drilling speed and the life of the rock drill. The hardness of
the shank adapter for drill should be appropriate, the service life is short
if the rock drill shank is too soft, the piston is vulnerable to damage if
the drill shank adapter is too hard. Litian shank adaptor has accurate
specifications, smooth surface, suitable hardness, the cross-section is
perpendicular to the axis, and closely coincides with rock drill sleeve.

Different Types Of Litian Drill Shank Adapter
Litian offers male and female threaded shank adapter, also called striking
bar or shank rod, such as T38 shank adapter, T45 shank adapter, etc. Our
shank adapters are suitable for various brands of rock drills, such as Atlas
Copco, Sandvik, Furukawa, Montabert, Ingersoll-Rand, Tamrock, etc., and the
rock drill shank adapter (drill shank adaptor) also can be designed
according to customer needs.
Shank Adapter Product Specification
Product Top Hammer Rock Drilling Tool - Shank Adapter
Other Names shank adaptor, shanks, shank rod, striking bar, shank end
rod, drill shank adapter
Material Structural Alloy Steel
Application Tunnelling , Mining , Quarrying, Blasting and Infrastructure
Construction

Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole
drilling, Drifting
Applicable rock drill Atlas Copco (Epiroc), Sand vik (Tamrock), Furukawa,
Ingersoll-Rand, Montabert, Boart LongYear, etc.
Shank Type Male threaded shank adapter, Female threaded shank adapter
Thread Type R25, R28, R32, R35, R38, t38 shank adapter, t45 shank
adapter, T51, GT60, ST58, ST68
Diameter 32mm~90mm
Length 370mm~835mm
Custom Design Acceptable

Shank Adapter Product Advantages


High-quality steel
Litian shank adapters use high-quality alloy structural steel as the raw
material, undergoes overall carburizing treatment, and adopt special CNC
machine tool processing equipment and processing flow to ensure the
processing quality of splines, water holes and other details, which can meet
the requirements of drilling harder rock layers and have a longer service
life.

Advanced manufacturing technology
Litian shank adapters adopt advanced thread manufacturing technology and
advanced surface treatment technology, and are manufactured according to
precise tolerances. They have the characteristics of tight connection, good
energy transmission effect, strong wear resistance, and easy disassembly.
Our shank adapters are uniformly heat-treated and scientifically
straightened with precision instruments to ensure straightness and anti-
irritability.

Strict quality control
All the shank adapters are strictly controlled to ensure that they have
satisfactory high quality.

Shank Adapter Product Packing

Each Shank Adapter for drill is carefully inspected and packaged to ensure
that it reaches you safely and undamaged.

Litian Heavy Industry Machinery Co., Ltd (Litian Rock Tools) is a
professional rock drill bits factory. We provide shank adapter, threaded
button bit, rock drilling tools and ec. Contact us to know shank adapter
price or more.
