SHACMAN F3000 Heavy Duty Tipper Truck 8x4 380Hp EuroII Yellow Dump Truck WE

Product Description
SHACMAN F3000 8X4 Dump Truck 380Hp



Detailed Product Description

Model:SX3315DT366
Drive type:8x4
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3315DT366
Drive type 8x4
Weight Gross Vehicle Weight ≤90
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 45～60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP10.380E22
Power/(kw/HP) 279kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×320 (8+7+8)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U
Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix
differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab,
ordinary rearview mirror, electronically controlled automatic constant
temperature air conditioner, electric window shaker, 165Ah maintenance-free
Battery, SHACMAN logo, full English logo.

Overview
1. Perfect truck lathe
One of the most distinctive features of dump trucks is their extensive dump
bed. Perfect for building debris or other loose objects, this bed allows
drivers to safely transport all types of materials. You don't need to worry
about your load spreading into the laneway, and the hydraulic lift mechanism
on the bed makes it easy to dump materials where they need to go.
2. Design options
Dump trucks Dump trucks are available in a variety of design options to
better suit the needs of different projects. For example, while many small
dump trucks are relatively similar to flatbed trucks, large dump trucks are
typically equipped with more axles, a wider range of dumping options, and
added joints to provide better control and greater range of movement. No
matter how big a car you need, there is an option that can meet your
specific project needs.

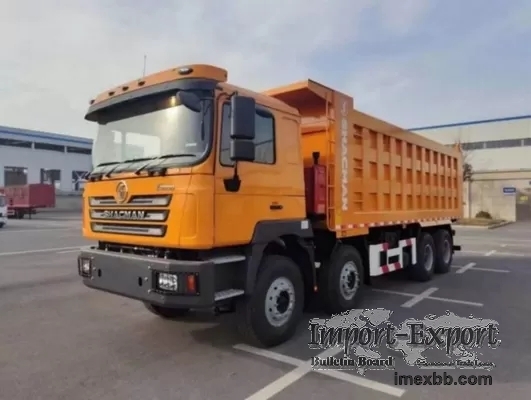

Dump Truck Pictures
