SFP 1.25G Tx1310/Rx1550 40Km LC Transceiver

Gearlink’s GCS5L0C35 SFP transceiver is compatible with the Small Form Factor
Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five
sections: the LD driver, the limiting amplifier, the digital diagnostic
monitor, the 1310nm FP laser (the 1550nm DFB laser), and the PIN/TIA. The
module data link up to 40km in 9/125um Single-mode fiber.

This transceiver meets the Small Form Pluggable (SFP) industry-standard package
utilizing an integral LC-Bi-directional optical and bidirectional sfp interface
connector. An enhanced Digital Diagnostic Monitoring Interface compliant with
SFF-8472 has been incorporated into the transceiver. It allows real-time access
to the transceiver operating parameters such as transceiver temperature, laser
bias current, transmitted optical power, received optical power, and
transceiver supply voltage by reading a built-in memory with an I²C interface.

The optical output can be disabled by an LVTTL logic high-level input of Tx
Disable, and the system also can disable the module via I²C. Tx Fault is
provided to indicate the degradation of the laser. Loss of signal (LOS) output
is provided to indicate the loss of an input optical signal of the receiver or
the link status with the partner. The system can also get the LOS (or
Link)/Disable/Fault information via I²C register access.

Get Free Quote
Compatibility of SFP 1.25G Tx1310/Rx1550 40Km LC Transceiver
Cisco
Juniper
GLC-BX40-U-I 1000BASE-BX40-U TX:1310nm/RX:1550nm 40km SFP

Technical Specification Of SFP 1.25G Tx1310/Rx1550 40Km LC Transceiver

General Specifications
Parameter Symbol Min Typ. Max Unit
Bit Rate BR 1.25 Gb/sec
Max.Supported Link Length Max 40 km

Absolute Maximum Ratings
Parameter Symbol Min Typ. Max Unit Ref.
Storage Temperature TS -40 85 ºC
Storage Ambient Humidity HA 5 95 %
Power Supply Voltage VCC -0.5 4 V
Signal Input Voltage -0.3 Vcc+0.3 V
Receiver Damage Threshold +3 dBm
Lead Soldering Temperature/Time Told 260/10 ºC/sec Note 1
Lead Soldering Temperature/Time Told 360/10 ºC/sec Note 2

Notes:

1. Suitable for wave soldering.

2. Only for soldering by iron.

Parameter Of SFP 1.25G Tx1310/Rx1550 40Km LC Transceiver
Bidirectional EX-SFP-GE40KT13R15
Technical Documents Of SFP 1.25G Tx1310/Rx1550 40Km LC Transceivers

SFP 1.25G Tx1310/Rx1550 40Km LC Transceiver Pdf

Related 1.25G SFP Transceiver Products
SFP 10/100/1000Base-TRJ45 Transceiver SFP 10/100/1000Base-TRJ45 Transceiver
More
SFP 1.25G Tx1310/Rx1550 10Km LC Transceiver SFP 1.25G Tx1310/Rx1550 10Km LC
Transceiver More
SFP 1.25G Tx1550/Rx1310 40Km LC Transceiver

As one of fiber transceiver manufacturers, we have types of related products
for sale, if you have needs, please contact us.

Minimum Order: 1 sets

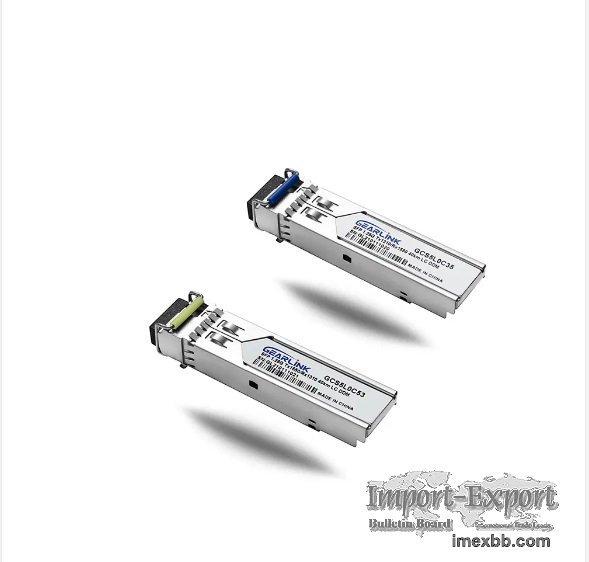

SFP 1.25G Tx1310/Rx1550 40Km LC Transceiver
