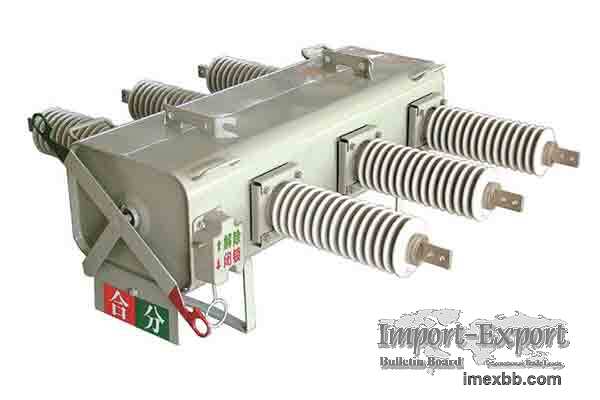

SF6 Gas 11KV Load Break Switch

SF6 Gas 11KV Load Break Switch
The 11kv load break switch is suitable for the distribution network with the
highest voltage 11kV, the rated current 630A, and the rated frequency 50/60Hz,
which can break off and close the load current and overload current in the
power system. The load break switch 11kv is equipped with an intelligent
controller to realize the automation of the distribution system. Inquiry 11kv
load break switch price.

Features of SF6 Gas 11kv Load Break Switch
The operating mechanism with spring energy storage ensures fast closing and
switching operation (<1000ms).

Operator place: Local/Remote.

11kv lbs equipped with an electronic controller, this pole mounted switch can
be operated locally or with FTU/RTU interface for console operation.

SF6 Gas 11kv Load Break Switch In Pole Mounted Switch Solution
The type of high-voltage bypass type SF6 insulated load switch is divided into
manual type and electric type, which is an engineering bypass type load switch
used for the maintenance and construction of distribution lines in order to
make uninterrupted power supply to distribution lines. This load break switch
11kv uses SF6 gas which has outstanding insulation and arc extinguishing
performance. Inquiry 11kv load break switch price. Check more pole mounted
switch solutions

Specification of SF6 Gas 11KV Load Break Switch PDF


Environmental Conditions for Equipment Use of SF6 Gas 11KV Load Break Switch


Installation site: No fire disaster, explosion danger, chemical corrosion, and
frequent strenuous vibration places

Working Procedure of SF6 Gas 11KV Load Break Switch
The load break switch 11kv that uses SF6 gas as insulation and arc
extinguishing medium is called the SF6 gas load break switch. It can be used to
switch and switch load current and overload current, and it can also be used to
switch and switch no-load circuits, no-load transformers, and capacitors.
Groups, etc., all three-position load switches with the functions of
connecting, disconnecting, and grounding have the characteristics of simple
structure and low price. But the load switch cannot disconnect the short-
circuit current.

Intended Use of SF6 Gas 11KV Load Break Switch
The SF6 load switch is an excellent load switch that many users have
experienced in recent years. In addition to its long electrical life and strong
braking force, it has the same advantages as the vacuum load switch. Its
outstanding advantage is that it is easy to achieve three working positions
(connected, disconnection and grounding), small current (inductance,
capacitance) breaking, strong resistance to severe environmental conditions. It
is suitable for popularization and application in urban and rural medium
voltage distribution networks.

As an electric power equipment ltd, we will try to meet all customers’ needs.

Minimum Order: 1 pieces
