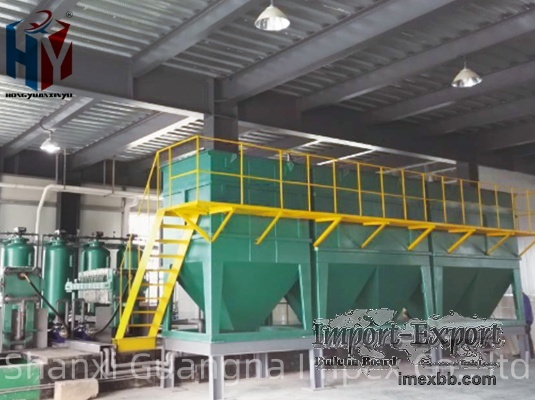

Sewage Treatment Plant

Product Introduction
Electroplating Wastewater Sewage Treatment Plant for rotogravure cylinder
making used in Engravured cylinder making and intaglio printing
industry.Electroplating liquid wastewater include the pretreatment rinsing
wastewater, plating rinsing wastewater. And the principal pollutants are heavy
metal ion .
Electroplating rotogravure wastewater reuse technology means to add reclaimed
water reuse system and reuse system on the basis of standardized discharge
technology. The Gravure cylinder plating Sewage Treatment Plant effluent can
meet reclaimed water reuse standards(such as cleaning).


Product Advantage
1.1 Up-to-standard discharge technology The emission of Electroplating
rotogravure waste water intaglio cylinder Electroplating wastewater which
contains heavy metal ions such as Cr, Cu and Ni must meet the local
requirements by adopting the means of "Physical and Chemical Reaction +
Sequencing Batch Precipitation + Ion Exchange + Compulsory Filtration" to reach
the standard.
1.2 Engravure printing roller Electroplating wastewater reuse technology
1.3 Electroplating engravured wastewater zero-discharge technology MVR
evaporator Working principle: MVR evaporator will increase the energy of
secondary steam by using compressor, and will take advantage of the secondary
steam with improved energy to recycle the potential heat of secondary steam.
Specifically: Increase the pressure and temperature of the secondary steam
generated by evaporator through the adiabatic compression in compressor, and
after that, the steam will be fed into the heating chamber of evaporator (heat
exchange system) as the heating steam, thus the potential heat of steam can be
reused Engravured cylinder Sewage Treatment Plant . The cold material will
absorb the heat of non-condensable gas through preheating exchanger before
being sent into evaporator, so the temperature of the cold material will
increase, meanwhile, the Auto intaglio copper tank condensate can be cooled by
this material. This can further improve the utilization ratio of heat.

Minimum Order: 1 sets
