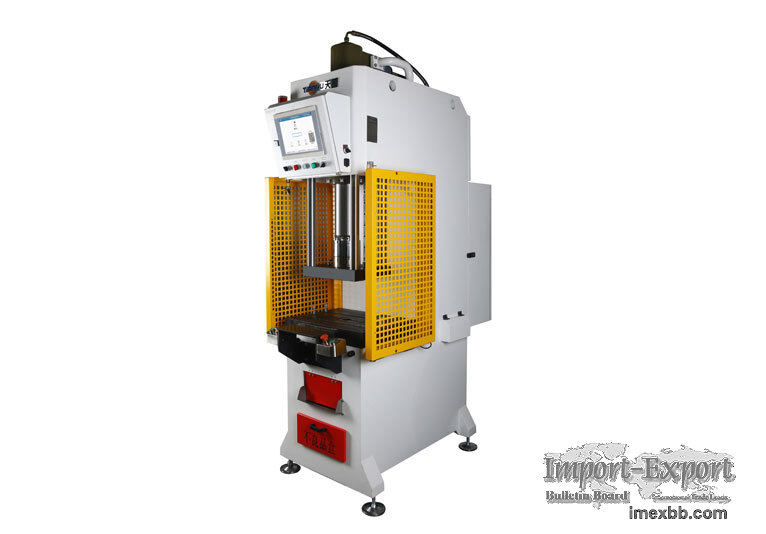

SERVO HYDRAULIC PRESS

TY203 series servo hydraulic press and CNC china hydraulic machine are
independently developed and designed by Ningbo Tianyu Machinery Equipment
Co., Ltd. with independent intellectual property rights. The servo hydraulic
press fit machine adopts the imported touch screen for data input and data
display. The original American imported force sensor is used as the pressure
acquisition signal. The system can calculate the pressure signal and
displacement signal at the speed of 500 times per second, sound various
alarms and draw the curve. The servo hydraulic machine is mainly applied to
the combination of piston and piston pin of gasoline engine, press-in of
interference fit between bearing and shaft sleeve, press-in of motor rotor
and rotating shaft, water pump, turbocharger, gearbox, gear and the
interference fit in the automobile industry and the motor industry. It is a
piece of pressing detection equipment with high-performance, high-precision
and high efficiency.

Operating Principle Of Servo Hydraulic Press
The servo motor drive of the hydraulic press changes the ordinary motor of
the transmission press into the servo motor, which is also called the servo
hydraulic press machine, servo press, or servo pressing. The slider movement
curve of the servo hydraulic press can be set according to the stamping
process, and the stroke can be adjusted.

Such kind of press is mainly for the materials being difficult to form, or
the complex shape parts of high precision forming. Servo motor hydraulic
press not only greatly improves the processing accuracy and stamping
efficiency of the press, but also reduces the production cost of enterprises
and saves energy by removing the flywheel and clutch.

Product Use Of Servo Hydraulic Press
The servo c frame hydraulic press machine can be used for the interference
detection of parts assembly with pressing force between 150-600KN;

Pressing of gears, chassis parts, rear axle, and subframe bushing;

For constant pressure system;

For pressure and extension test system;

For various interference assembly of the automobile industry and the motor
industry.

Main Functions Of Servo Hydraulic Press
Pressing mode: positioning pressing; constant pressure pressing; cycle
pressing of several parts
