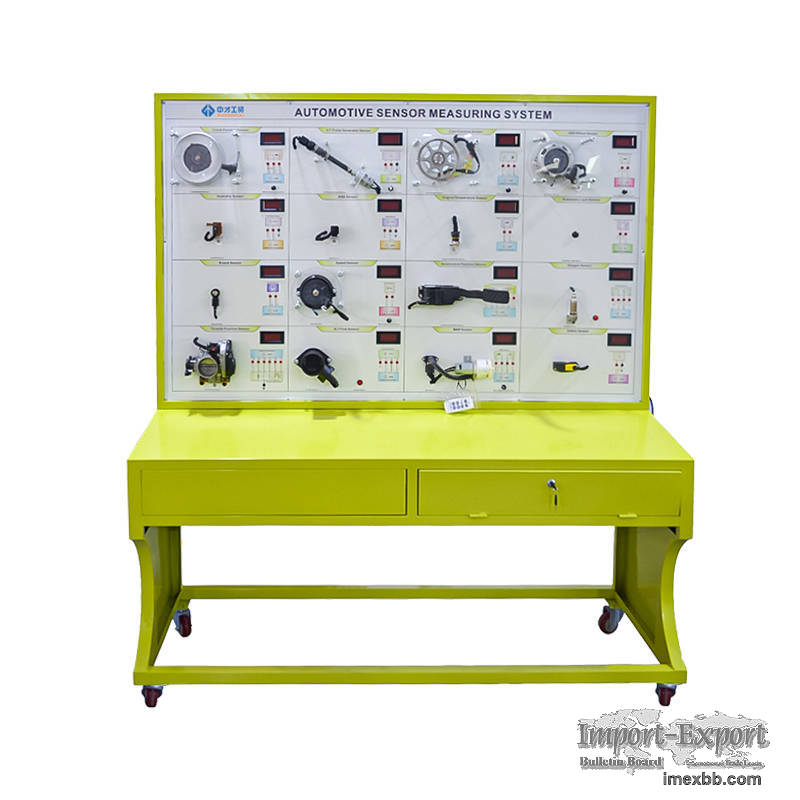

Sensor measurement system instruction board

I. Product introduction.
　　The practical training system is based on real automotive sensors and
actuators, integrating all relevant control switches and actuators into a
demonstration board, which systematically shows the working principle of
automotive sensors and actuators. It can carry out demonstration experiments,
fault diagnosis, data measurement and other practical training operations of
automotive sensors and actuators.
　　
II. Functional features.
　　1. Real runnable automotive sensors and executive equipment, fully
demonstrate the composition structure and working process of the car.
　　2. The training table measurement panel is painted with colorful spray-
painted circuit diagrams, installed with detection terminals, can be directly
on the panel to detect the electrical signals of sensors and control units such
as executive equipment pins, such as resistance, voltage, current, frequency
signals, etc.
　　3. Composition: crankshaft angle sensor, A/T pulse generator sensor, cam
position sensor, ABS wheel sensor, humidity sensor, AQS sensor, engine
temperature sensor, auto light sensor, blast sensor, speed sensor, gas pedal
position sensor, oxygen sensor, throttle position sensor, air flower sensor,
map sensor, safety sensor
　　
III. Materials and processes.
　　1. Training table measurement panel using 8mm thickness of high-strength
acrylic sheet spray-painted, with a large temperature difference, wear-
resistant, moisture-proof, anti-corrosion, not easy to deformation, long
service life, bright colors, not easy to fade and other characteristics.
　　2. Training table made of high-grade steel, with high strength, corrosion
resistance, long life, etc., without the need to go through the spraying
process, more environmentally friendly, the appearance of more beautiful and
high-grade, the table with self-locking casters device, mobile and flexible,
safe, reliable, durable.
　　3. Training table with practical and beautiful drawers for placing daily
teaching supplies.
　
　　
IV. Teaching content.
　　1. Cognition of the configuration of automotive sensors and actuators
　　2. Understand the control principle of automotive sensors and actuators
　　3. Master the basics of automotive sensors and actuators
　　4. Master the working principle of sensors and actuators
　　5. Be able to independently enumerate and explain the components of sensors
and actuators
　　6. Master the operating conditions of the actuators of sensors and
actuation equipment
　　7. Independently troubleshoot, maintain and repair automotive sensors and
actuating equipment
　　
V. Technical parameters.
　　1. External dimensions: 1600 × 700 × 1800mm (L × W × H)
　　2. Input power supply; AC 220V±10% 50Hz
　　3. Working power supply; DC12V

Minimum Order: 1 sets
