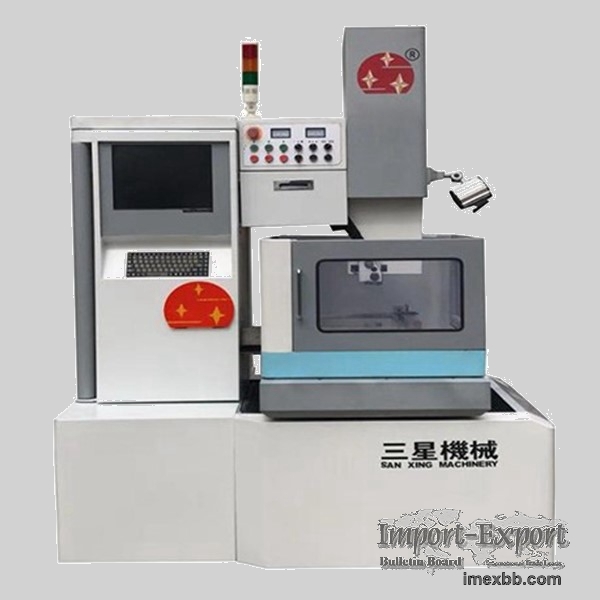

Sell High Speed CNC Wire Cut EDM Machine DK77C1/C2 Series From China

High Speed CNC EDM Wire Cut Machine is also named as the CNC High Speed Wire Cut
EDM Machine or Fast Speed CNC Wire EDM or High Speed Wire EDM (HS Wire EDM). It
has no special requirement to the processed metal material properties. In
principle, Sanxing Machinery high speed cnc EDM wire cut machine can process all
the conductive materials such as super-hard and hard alloy, quenching materials,
stainless steel ductile materials, various magnet steel fragile materials,
uneasily-clamped thin wall spares etc.

High Speed CNC Wire Cut Machine DK7732C2 with controller integrated & semi
enclosed cover, is our most advanced high speed CNC Wire Cut machine. Compared to
the Medium Speed CNC Wire Cut Machine, it has the more competitive price.

FEATURES OF CNC EDM WIRE CUT MACHINE – DK7732C2
A. Semi Enclosed Cover
B. Fixed Wire Drum (Patent: No.200710019393.0)
C. Autocut Software + Windows Operation System
D. Controller Integrated Type
E. Linear Guideway Made By Taiwan, China or Equal
F. Industrial Use Computer or Brand Computer
G Auto Wire Tension Tool
H. Special Abrasive Nozzle

TECHNICAL DATA OF CNC EDM WIRE CUT MACHINE – DK7732C2

Type Unit DK7732C2
Worktable Size mm 650×400
Table Travel mm 400×320
Max. Workpiece Thickness mm 200
Standard Workpiece Accuracy mm ≤0.015
Best Surface Roughness μm ≤2.5
Max. Cutting Speed mm2/min 200
Wire Running Speed m/s 5-11.5
Taper °/mm 6°/100(Bigger Tapers Optional)
Power Input V/Hz 3 phase 380V/50Hz or 220V/60Hz or 415V/50Hz
Overall Power KVA 2
PRODUCT DETAILS
Product Details of High Speed CNC Wire Cut EDM / CNC Wire EDM / HS Wire EDM / WEDM
- Sanxing Machinery

OPTIONAL
1. Model: from DK7732C2 To DK77120C2
2. Bigger Taper Optional
3. High Thickness Optional
4. Touch Screen Monitor Optional
5. Different Power input Optional
6. Aluminium Cutting Equipment Optional
7. Servo Motors Optional
8. D.R.O optional

COMPARSION OF ALL THE EDM CNC WIRE CUT MACHINE
Comparision of High Speed EDM CNC Wire Cut Machine / CNC Wire Cut EDM Machine -
Sanxing Machinery

DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During the warranty period, we can provide free parts and components that are not
damaged due to improper operation (consumables not included). Out of warranty
period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have
been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you
can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Such as the Worktable size, worktable travel, surface finish, cutting accuracy,
and your special requirements.

Keywords: CNC Wire Cut Machine, CNC Wire Cutting Machine, CNC Wire Cutter, CNC
Wire Cut EDM, CNC Mo Wire EDM, Wire EDM, EDM Cut Machine, High Speed Wire Cut EDM,
High Speed Wire Cut Machine, Fast Speed Wire Cut EDM Machine, Controller
Integrated Type Cut Machine, Semi Enclosed Wire Cut Machine, DK77C2 Series，
DKK7732C2…

Minimum Order: 1 sets
