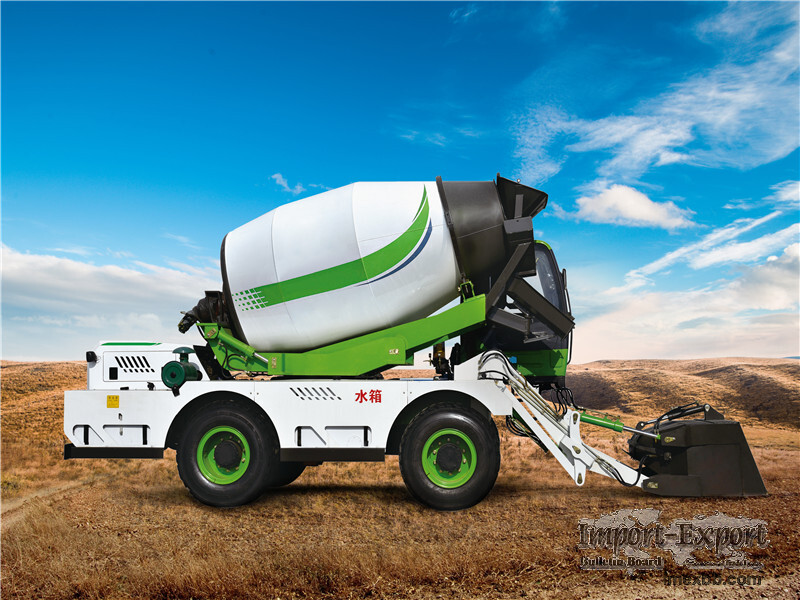

Self Loading Concrete Mixer

Self-loading concrete mixer is a multi-function concrete production equipment.
It can load, mix materials and then deliver concrete to the job site. It
combines the function of wheel loader, concrete batching plant and concrete
transit mixer. It is very suitable for small and narrow construction sites,
like road construction, road repair, small building construction etc. It is
very cost-saving for small and medium construction projects.
Item SLM1.8 Self Loading Concrete Mixer
Drum Volume 2,680 L
Mixing Capacity Per Batch 1.8 m3
Productivity 7.2 m3/h
Diesel Engine Brand 490 YUCHAI Supercharged Engine
Diesel Engine Power 55 kw
Gearbox Model ZL-265 Power Shift Gearbox
Gear Shift 4 forward 4 back
Fuel Tank 63 L
Total Hydraulic System Capacity 63 L
Oil Tank 16 L
Hydraulic Reducer HJ80-43
Hydraulic Pump CBFC 50/40
Hydraulic Motor BM5-160
Water Tank Volume 400 L
Water Supply Hydraulic Water Pump
Water Weighing Time Relay
Wheelbase 2,660 mm
Drive Form Torque Converter

Click to Enlarge
