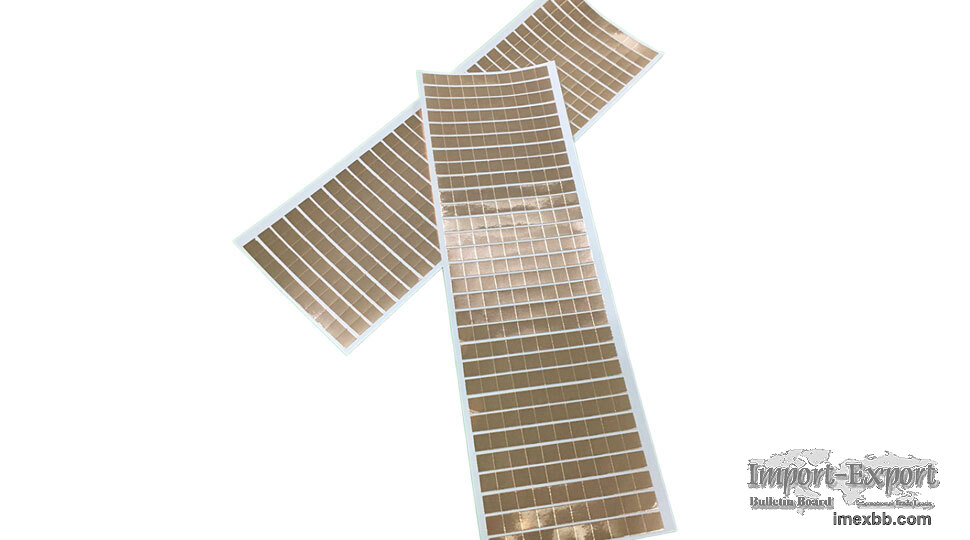

Self Adhesive Copper Sheet

Self-adhesive copper sheet backing is copper foil, coated with acrylic
adhesive. Self-adhesive copper sheet is divided into single-sided coating and
double-sided coating. Single-sided self adhesive copper foil sheets is divided
into single-conductor copper foil tape and double-conductor copper foil tape.
Single-conductor copper foil tape means that the coated surface is not
conductive, and only the other side is copper, so it is called single-conductor
means single-sided conductive ; Double-conducting copper foil tape means that
the acrylic-coated surface is conductive, and the copper on the other side is
also conductive, so it is called double-conducting that is double-sided.

There are also double-sided adhesive-coated copper foil tapes that can be
processed with other materials into more expensive composite materials. The
double-sided adhesive-coated copper foil also has two types of adhesive
surfaces: conductive and non-conductive. Customers can according to their own
needs for conductivity to choose.

Self Adhesive Copper Foil Sheets-TDS
Material: CU 99.98%
Carrier thickness: 0.018mm-0.3mm
Adhesive thickness: 0.015mm-0.04mm
Adhesive: conductive acrylic
retention force: 1.5～1.3ｋｇ／25ｍｍ
Heat Resistance:－10℃---120℃
Breaking strength: 4.5～4.8ｋｇ／ｍｍ
Elongation: 7%

Features Of Self Adhesive Copper Foil Sheets
High temperature resistance

self adhesive copper sheet can withstand a high temperature of 120°

Anti-interference, shielding

Widely used in digital equipment, electrical equipment has a good anti-
interference and shielding effect

High viscosity without leaving marks and easy to peel off

High viscosity stability, lasting and stable tearing off without leaving traces

Hopelight Electrical is a professional heat resistant tape manufacturer, we
provide Polyimide Tape, Polyester Tape, copper tape, Teflon Adhesive Tape,
Glass Cloth Tape and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
