Seiko 508GS 12PL Greyscale Printhead-IRH2533U-2410 (WORLD PRINTHEAD)

Product Description

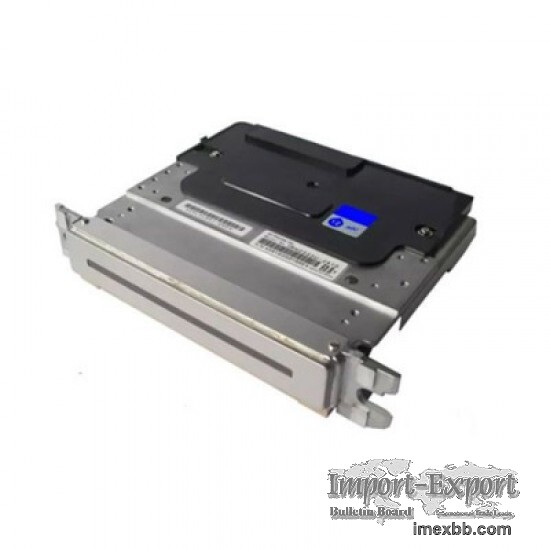

Seiko 508GS 12PL Greyscale Printhead-IRH2533U-2410

Description:

This Seiko 508GS 12PL solvent printhead is suitable for a range of
printers, including Infiniti printers. The Seiko 508GS is a state of the
art grayscale print head with a built-in damper assembly and a nozzle
guard. This is the original Seiko part (number IRH2533U-2410)



To be used with:

infiniti challenger FY-3266T / Challenger FY-306T / Challenger FY-3208T /
Challenger FY-3286T / Challenger FY-3286J / Challenger FY-3208GS, Crystek
X5300, Leyenda 3200F3 / 1800T3, Nuocai NC-SPT2531, Forni HS1804, Icontek
TW-1800J3, OraJet J18, CrystalJet 6000 series



Specifications:

Activ , e Print Width: 72mm

Nozzles: 508

Nozzle Plate: Non-Wetting

Physical resolution: 180 dpi

Firing Frequency: 18 kHz (and multiples)

Drop Volume: multiple of 12pl (up to 7 drops)

Minimum Order: 1 pieces
