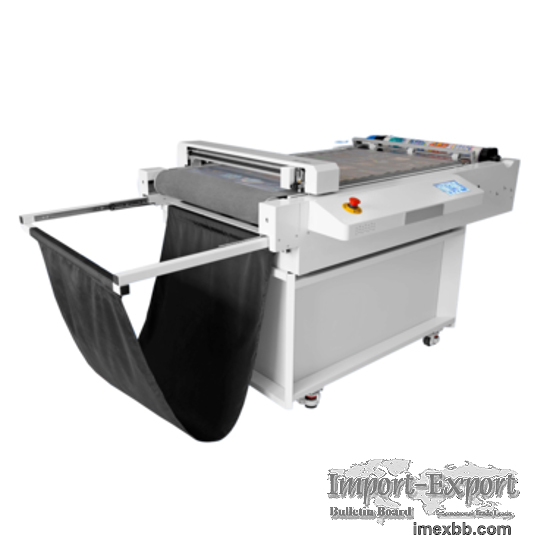

Secabo DTF MultiCut Pro

The Secabo DTF MultiCut Pro is Secabo's brand new flatbed plotter with a conveyor belt.

This advanced device is able to convey and precisely cut printed materials from a roll, offering a maximum cutting width of 640mm and a length of 880mm.

Ideal for: DTF Textile transfersUV DTF Adhesive filmsSublimation printingThe "DTF MultiCut Pro" is equipped with a high-performance CCD camera that detects register marks of the printed media at lightning speed and allows QR codes to be read at lightning speed to assign the cutting data to the corresponding print.

It reads black marks on white media, white marks on black media, and white marks on transparent media without any problems.

Focus and illumination can be adjusted individually via the display.

This flatbed plotter impresses with its versatility in connectivity: you can connect it via Wifi, USB stick, USB, or Ethernet.

By integrating a hot folder in the network, the plotter can automatically load the cutting data after reading the QR code.

With an impressive cutting speed, the plotter reads the registration marks and cuts an area of 600mm x 880mm between 30 and 60 seconds.

The "DTF MultiCut Pro" comes with a stand and a collection basket to ensure a clean and tidy working environment.

In addition, the 7" touch screen offers easy and intuitive operation to set all parameters. With the "Secabo DTF MultiCut Pro", you maximize your productivity without compromising on quality.

Plot files can be generated via the included CorelDraw and Adobe Illustrator plug-ins. Further software integrations are planned.
Manufacturer part number: 106.4200.00

SKU: 106.4200.00

TECHNICAL DATA

Motor X-Servo motor; Y-Servo motor

Sensor CCD Camera

Control Panel 7-inch touchscreen

Tool Quantity one

Tool Model blade/pen

Media hold method Vacuum suction

Scanning code type mark or QR code

Maximum cutting size 640mm x 880mm

Scanning speed about 5s

Cutting speed 10-700

Cutting force 0-750

max. material about 250g(Depend on variable material)


Media feeding method auto feeding system

Maximum diameter of paper feed roll 200mm

Maximum width of paper feed roll 600mm

Feeding speed1 00-600

Minimum character about 10mm² (depending on variable material and graphics)

Inner storage Save files into the machine

Mechanical resolution 0.02mm

Programmable resolution HPGL 0.025mm

Repeat precision ≤0.05mm

Cutting Media Types Vinyl, self-adhesive sticker, cardboard

Connectivity USB, TCP, WiFi, U disk, Interface

Weight with package 277,00 kg

Brand Secabo

Warranty 2 years


More Information Please Visit our website Official GAOLITOPRINTER for catalog, transaction, full Description, Term and Conditions, best product, or special price.

Minimum Order: 1 sets

Secabo DTF MultiCut Pro
