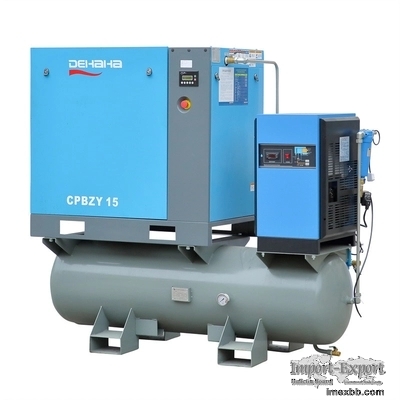

Screw All In One Air Compressor 350 Lilter Air Tank Dryer Integrated Air Co

20hp 15kw Screw Air Compressor Integrated 350 Lilter Air Tank Dryer All In One
Air Compressor



Product Advantages



The Air Compressor for Fiber Laser Cutting Machine

Integrated compressed air system includes screw compressor, refrigerated air
dryer, tank specialized for fiber laser cutting machine.



More Convenient

Integration of air compressor, air tank, and air dryer. It avoids the trouble
of customers purchasing additional pipes and fittings. Use directly after
installation, saving space.



More Reliable

Modular design, durable components, low noise and vibration, and easy
maintenance.



Energy Efficiency

Using permanent magnet variable speed motor, specialized for laser cutting
machine, reducing pressure leakage and more energy-saving.



Pure Compressed Air

High efficiency refrigerated dryer, multi-stage precision filter, oil content
of gas is lower than 0.001 PPM, ensuring the purity of compressed air.



Technical Parameters

Model
CPBZY15

Type

Fixed air-cooled twin-screw air compressor
Dimensions

1900*700*1650mm

Installation method

Fixed installation without foundation
Rated displacement

1.16m3/min

Rated exhaust pressure

1.58Mpa
Exhaust oil content

≤0.003 ppm
Exhaust pressure dew point

2~10°C
Compression stages

Single-stage
Transfer method

belt
Compression oil consumption

8L
Cooling method Air cooling
Cooling air volume 3500 m3/h
Ambient temperature

0 ~ 45°C
Noise

≤65 dB
Weight

560kg
Notes:

1. A represents air-cooling type,W represents water-cooling type;
2. Working Environment temperature: -5ºC~45ºC;
3. Discharge temperature is less than ambient temperature +10ºC~15ºC;
4. Drive Mode: belt driven;
5. Startup Mode: direct start under 11kw, and above 11kw;
6. Work Power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for
customers;
7. F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard
(GB/T3853)



Screw All In One Air Compressor 350 Lilter Air Tank Dryer Integrated Air
Compressor 0


Dehaha 4-in-one (Compressor + receiver tank+ dryer + filters) high pressure air
compressor is special compressor for Fiber Laser Cutting industry, custom built
to provide filtered, dried, continuous reliable supply of high pressure
compressed air at 2~10ºCdew point to assist laser cutting. Produce your own
assist air at a fraction of the cost of cylinder.




Application industry
Screw All In One Air Compressor 350 Lilter Air Tank Dryer Integrated Air
Compressor 2
Project Case
Screw All In One Air Compressor 350 Lilter Air Tank Dryer Integrated Air
Compressor 3



About us
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more
than 25 R&D engineersteams ’ . We focus on the research & develop,manufacture
and energy-saving solutions of screw air compressor to create value for
customers and society.In 2018 our total sales volume approached 15 million US
dollars.By over 23 years enhanced experiences of designing,producing and
marketing,today our valued customers are over 130 countries.


Germany Standard and 13 years exporting experience help us won more than 50
loyal overseas agents.

Dehaha’s primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment
