Scraping Slag Off Conveyor for sale

industrial automatic boiler professional slag removal machine coal feeder
conveyor belt Scraping Slag Off Conveyor for sale

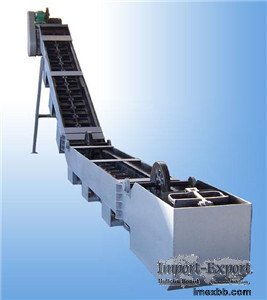

Scraper slag machine is mechanization discharge device used for 1 ~ 6 t/h chain
grate and reciprocating grate boiler. Boiler adopts mechanization dump, reduce
the intensity of labor, eliminate slag dust pollution, improved health
conditions of boiler room.

Product Description
double-chain scraper slag remover is suitable for slag removal of industrial
boilers with a slag outlet arranged below. It has the characteristics of small
floor space and long service time.
The high-temperature ash discharged from the furnace is firstly broken into
small pieces by the roller-type slag breaker to facilitate cooling and
transportation.
After the crushing of the ash and slag into the water-cooled screw slag
extractor and between the screw blade and the outer cylinder cooling heat
transfer back out.
If necessary, air lock (star ash discharge valve) can be provided at the outlet
of the slag cooler.
Ash inlet temperature is less than 900 ℃, clinker size less than 100 mm, the
transmission distance is 4 to 7 m, the level of the installation

TZ coal feeder conveyor belt Technical Parameters
Model Q'ty Delivery Distance Motor Power Groove Width Groove
Height Velocity A Tunnel
(W×D×L)
LGC-A30 3 25 1.5 303 500 0.045 4000
(It can be lengthened as customers' requirement) 1000×1000×∑L
50 2.2 700 0.045
LGC-A40 4 25 1.5 404 500 0.045 1000×1000×∑L
50 2.2 700 0.045
LGC-A50 6 505 500 1150×1000×∑L
50 2.2 700
LGC-A60 10 25 3 606 500 1300×1000×∑L
57 4 700
LGC-A80 14 25 4 808 500 0.072 1500×1000×∑L
57 5.5 700 0.072
LGC-A100 16 25 5.5 1010 500 0.072
1800×1000×∑L
60 7.5 700 0.072

Advantages of Boiler Slag Removal Machine
1. The cast stone slab is placed at the bottom of the base groove, which can
effectively improve the wear resistance of the material and prolong the service
life of the base groove.
2. The scraper material of the double-chain scraper is cast steel, the
transmission chain is 25MNV high-strength material for mining, and the
structure is double-row ring welding. In the process of transporting ash, the
tightness of the chain can be automatically adjusted by the device at the front
of the device.
3. The double-chain slag removing machine can reduce the labor intensity of the
furnace workers, improve the working conditions of the boiler room, and ensure
the boiler production efficiency to the greatest extent.
4. Compared with other closed type slag removing machines, the double-chain
type is an open design, which can ensure that all ash can be discharged to the
outside of the boiler.
5. The scraper support is a cast stone rail support method, which avoids
various problems of supporting by the rollers, and can effectively reduce the
maintenance cost of the equipment.
6. It is suitable for the slag removal of single-drum boilers with all slag
outlets arranged at the rear and lower parts of the boiler.
7. The chain is automatically tensioned by manual or machine. The double
overload protection system of the motor can ensure that the chain is not
dragged, not stacked, and the ash is transported smoothly, meeting the
requirements of industrial boilers and heating boilers.

FAQ about BOILER SLAG REMOVAL MACHINE
1. Q: Can you give us a quotation right now?
A: Sorry, our products are all different and special. Please give us detailed
technical data. Then we will make a design and quotation for you as soon
as possible.
2. Q: Can you give us your price list?
A: Sorry, we don’t have any. Our products are all manufactured according
to customers’ requirements. So our products areall different and special.
3. Q: What is your MOQ?
A: 1 piece/set.
4. Q: Do you have any one in stock?
A: Sorry, we don’t. Our products are all manufactured according to
customers’ requirements. So our products are all different and special.
5. Q: Do you accept a special order?
A: Yes, we do. We can manufacture all kinds of chemical equipments
according to your technical drawings(Before you givethem to us, will sign
the contract and confidentiality agreement with you. You don’t need to
worry about that.)
6. Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and
design. And if you make the product in our factory,the design will be free.
If not, design fees will be charged accordingly.
7. Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and
project. But the detailed drawing and data will be sentyou after we
signed the contract and confidentiality agreement.
8. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase
unless manmade damage.If there is anything wrongwith product itself
quality problem,we will change or repair it at our charge.If not, we will
provide aftersales service at your charge.
9. Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation.
If you still have problem,we will send our engineer oversea for installation
guide.

Company Information:
Hebei Taizhe Machinery Equipment Trading Co., Ltd. is located in shijiazhuang
city. We have a group of professional research, engineering, production, sales
and after-sales service team serve all around the world clients.
we mainly produce dust collector and material conveying system,which involves
dust collector,pneumatic conveying system,bucket elevator,scraper
conveyor,screw conveyor,rotary valve,etc

Our industrial dust collection system has been exported to Malaysia, Indonesia,
India and more than twenty countries around the world. We can provide one-stop
service, match the different requirement from different client group.

For more industrial pneumatic conveyor, please visit our website.

https://www.hbtzmt.com/product-ind , ustrial-automatic-boiler-professional-slag-
rem , oval-machine-coal-feeder-conveyor-belt.html

Minimum Order: 1 sets
