SCM3000 M2M Chip Personalization Machine

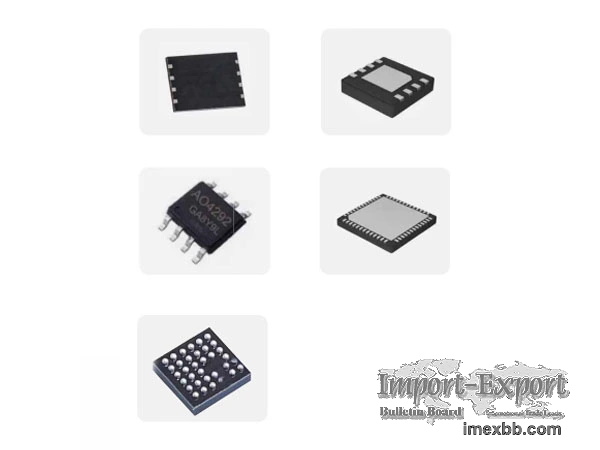

The M2M Chip Personalization Machine SCM3000 can conduct chip electrical
performance test, chip encoding and surface laser marking for M2M chips in QFN,
DFN, VSOP8 and other packaging forms, automotive electronic SE (Security
Element), eSIM and other smart devices.

SCM3000 can provide high-speed, stable and safe personalization production
services for global mobile operators, smart device OEMs, and automotive
electronic security chip manufacturers. During the past six years since 2017,
nearly 500 million chips have been produced for more than dozens of factories.

Specifications of SCM3000 M2M Chip Personalization Machine
PARAMETER

Capacity 2500/uph
Overall Dimension 1850mm X 1600mm X 1750mm
Weight 600kg
Power Source 220V(-5%~+10%), 50Hz, 6KW
Noise ＜65dB
Operating Temperature 23℃±3℃
Working Humidity 50±10%
Compressed Air stress: 0.5Mpa Flow rate: 300LPM
Communication Interface Ethernet

Fuctions of SCM3000 M2M Chip Personalising Machine
PARAMETER
Input Module
1. Tray Input: up to 20pcs of trays can be loaded.

2. Tape Input: tape in 12mm is supported, 8mm, 16mm and 24mm is extensible;
Compatible with tape rolls in 1000pcs and 3000pcs.

3. Compatible with tray and tape input.

Chip Rotating Module
1. Equipped with 2 chip storage stations.

2. The chip direction can be automatically adjusted by forward & reverse 90°
and forward.

3. 180° rotations by identifying the mark point on the chip.

IC Perso Module
1. Standard configuration: 16 perso stations with 4pcs of PIOTEC 4IN1 contact
readers PT204PT-AMA.

2. Extensible configuration: 32 perso stations with 8pcs of PIOTEC 4IN1 contact
readers PT204PT-AMA.

3. Chip encoding and remaking online is supported. ISO7816, Serial port,
Bluetooth, SPI and 2C protocols are supported.

Laser Marking Module
1. Equipped with 1 set of 20W fiber laser.

2. Equipped with 1 set of extractor.

3. Piotec-owned laser marking technology is adopted, and surface information in
2 chips can be marked at the same time, which improves marking efficiency.

IC Verification Module
1. Equipped with 2 verification stations with 1pcs of PIOTEC contact reader
PT204PT-AMA.

2. The internal nformation in 2 chips can be read and verified at the same
time, ensuring 100% accuracy.

OCR Verification Module
Equipped with a set of 5 million pixel industrial camera (including light
source).

Reject Module
Equipped with 8 reject boxes.

Chips which fail to be encoded or marked can be rejected automatically and
stored in different categories to reduce material loss and labor costs.

Output Module
Tray Output: up to 20pcs of trays can be loaded.

Tape Output: Compatible with tape rolls in 1000pcs and 3000pcs.

Compatible with tray and tape output for chips packaging.

Advantages of SCM3000 M2M Chip Personalization Machine
WHY

High Stability
Rejecting rate is less than 1/1000.

Downtime for 100-hour failure is not exceed 30 minutes.

High-precision of mechanical carrying mechanism can handle chips down to 2*2mm.

High Compatibility
Dozens of chips in different froms and specifications can be supported, and
switching time is less than 20 minutes.

Compatible for both tray and tape for input and output.

Secondary development is fully supported to meet various customized
requirements.

High Productivity
The instant production capacity can reach 2500 chips/hour.

The throughput can reach 1,300,000 chips/month.

High Cost-performance Ratio
The customer procurement costs can be reduced by 15% due to variety of self-
developed core technologies integrated.

The maintenance costs can be reduced by 20% with less wearing and longer
service life.

As one of smart card manufacturers, we will do our best to meet all the needs
of customers.

Minimum Order: 1 sets
