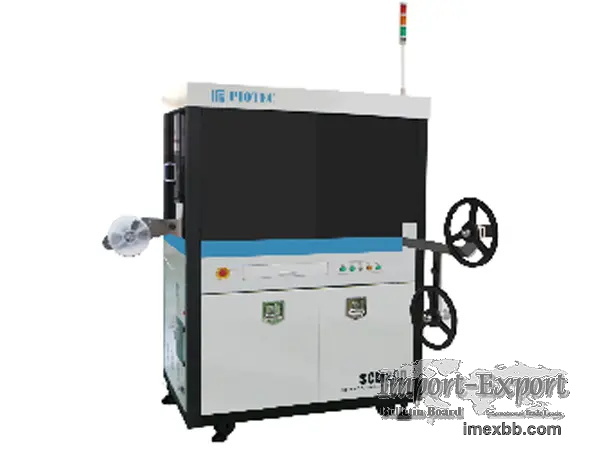

SCM200 M2M Chip Personalization Machine

The SCM200 M2M chip personalization data writing machine can perform electrical
performance testing, personalized data writing, and surface laser personalized
printing on M2M chips, automotive electronic SE (Security Element - security
chips), eSIM and other smart devices in QFN, DFN, VSOP8, WLCSP and other
packaging forms.

SCM200 can provide stable WLCSP chip personalization data writing production
services for global mobile operators, smart device foundries, and automotive
electronic security chip manufacturers, and can flexibly and quickly switch
production orders of different packaging forms.

Specifications of SCM200 M2M Electronic Chip Making Machine
PARAMETER
Overall Dimension 1250mm×950mm×1870mm(Excluding the tape bracket part)
Weight 450Kg
Power Supply 220V(-5%～+10%), 50Hz, 3KW
Noise ≤65dB
Operation Temperature 23℃±3℃
Operation Humidity 50±10%rh
Compressed Air stress: 0.5Mpa Flow rate: 3300L/M
Communication Interface Ethernet
Functions of SCM200 M2M Chip Personalization Machine
PARAMETER
Equipped with two chip storage stations. The chips are positioned to
ensure accurate placement, and this mechanism includes a pin turning function,
which can rotate the chips by 90° or 180°. Two sets of chip positioning units
are placed at the post station of the tape feeding unit and the pre station of
the tape receiving unit, respectively, for direction adjustment when the chip
enters the writing station and when the chip is collected.
Standard configuration of four read-write stations, expandable to eight.
Standard configuration of one PIOTEC reader-writer PT204PT-AMA, expandable to
two. It can perform personalized data writing and online card replenishment
functions on the chip, supporting 7816, serial port, Bluetooth, SPI and I2C
protocols. IC data verification function can be realized.
Equipped with a 20W fiber laser marking machine. Equipped with a smoke
purifier.
Equipped with a set of 5 million pixel CCD industrial cameras and light
sources. Equipped with a set of OCR (Optical Character Recognition software).

Advantages of SCM200 M2M Chip Personalization Machine
WHY

High Stability:
The equipment failure rate is less than 0.01%.

Focused on WLCSP chip personalized data writing production.

High-precision mechanical handling mechanism, supporting chips as small as
1.4*1.4mm.
High Compatibility
Supports production of chips of up to a dozen different sizes, and switching
between different chip specifications takes only 20 minutes.

Supports two ways of feeding: tray and feeder.

Fully supports secondary development to meet various customization needs.

High Cost-Performance Ratio
Integrates a variety of independently developed core technologies, reducing
procurement costs by 15%.

Fewer consumable parts and longer life, reducing maintenance costs by 20%.

High Flexibility
Small footprint, flexible configuration.

As a smart card company, we will do our best to meet all the needs of
customers.

Minimum Order: 1 sets
