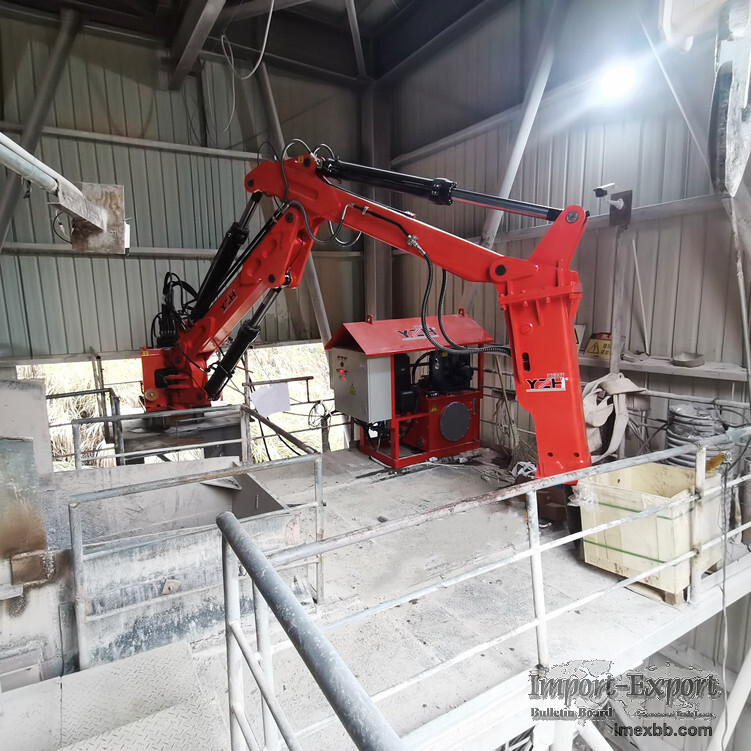

satationary rockbreaker boom system

The installation of YZH Rock Breaker Boom greatly improves productivity,
maintaining production capacity by preventing the crusher from clogging and
averting bridging in feeder and Jaw. The boom is used to resize oversized
material and also to rake obstructed or bridged material towards the crusher.

Thus, ensuring that the primary crusher operates at its full capacity at all
times. This has significant economic benefits for the quarry operator as YZH
boom quickly pays for itself in increased production. Therefore, the
installation of YZH boom represents a simple and highly cost-effective means
for a quarry operator to eliminate some of the most hazardous operation found
in the industry. A strong safety policy makes long term business sense.


Boom Weight 6600kg
Max. Horizontal working radius 7.4m
Max. Vertical working radius 5.3m
Min. Vertical working radius 2.51m
Max. Height 4.74m
Max. Working Depth 4.43m
Rotation 170
Hydraulic hammer model YZH1350-YZH1400
Power of Hydraulic Power Unit 55/75

Minimum Order: 1 sets
