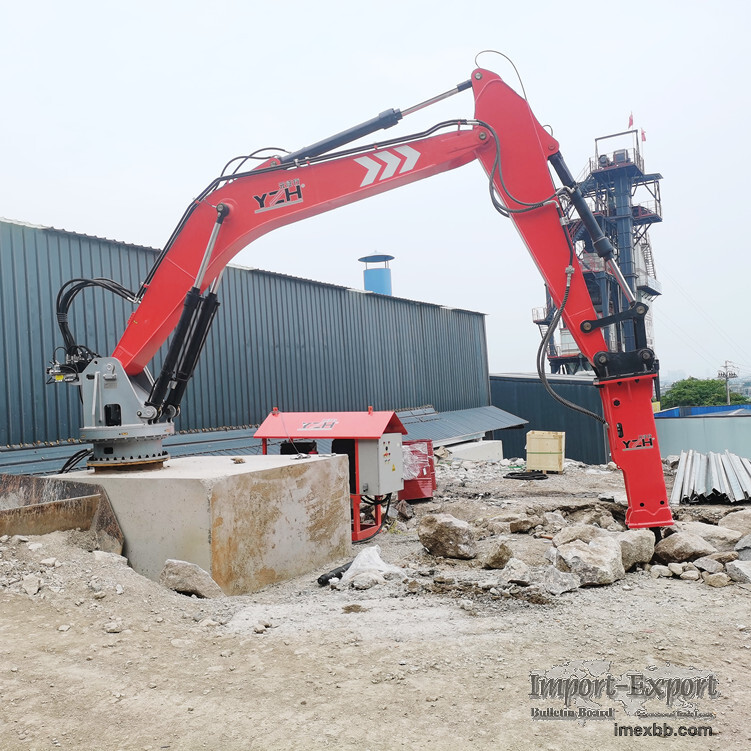

satationary boom rockbreaker system

YZH medium range breaker booms are similar to the small series booms, but are
designed for heavier open-pit and underground applications. Quarries and mines
typically use YZH medium range booms to improve the productivity of stationary
crushers by feeding material into the crusher and by raking the hopper area.
YZH large range pedestal hydraulic rockbreaker booms are specially designed
primarily for mining markets, although can be used across a range of
applications. They're proven designs based on years of experience, research and
listening to customer feedback, and are all productive, efficient and reliable.

Boom Weight 3420kg
Max. Horizontal working radius 10.7m
Max. Vertical working radius 8.15m
Min. Vertical working radius 2.62m
Max. Height 6.23m
Max. Working Depth 7.66m
Rotation 360
Hydraulic hammer model YZH1000-YZH1250
Power of Hydraulic Power Unit 37/45/55

Minimum Order: 1 sets
