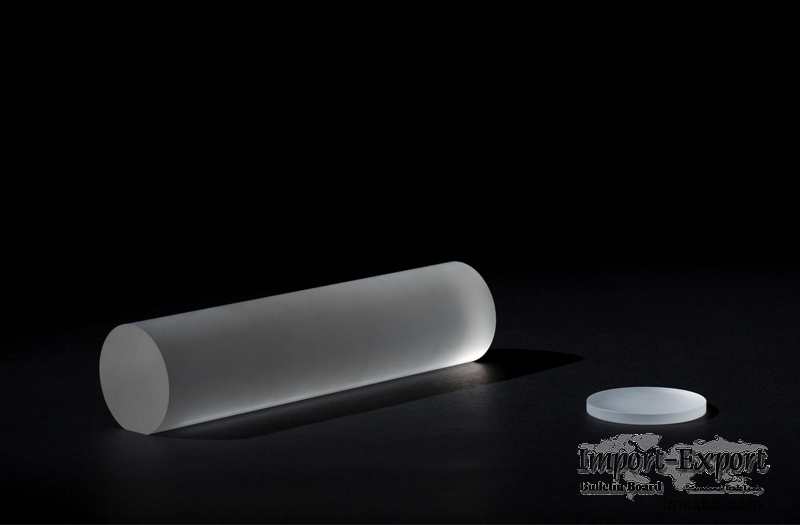

SAPPHIRE INGOTS/RODS

Sapphire ingots are typically used as raw materials for further processing.
These sapphire rods and sapphire ingots are uniformly shaped, usually as
cylinders. The most sapphire crystal grows in A-axis, and the most widely used
sapphire substrate in the LED market is its C-plane (0001). Therefore, it is
necessary to drill the c-plane sapphire ingot from the side of the crystal.

CRYSCORE provides sapphire rods and ingots with ground surfaces for further
processing and polishing. They are cored from high-grade Kyropoulos grown
boules. We supply dia. 2-inch to 8-inch sapphire rod and ingot with any
orientation and custom specifications. Flats are available upon request.
Specifications of Sapphire Ingots/Rods
Item Sapphire Ingots
Crystal Materials 99,999%, High Purity, Monocrystalline Al2O3
Orientation C-plane(0001), A-plane(11-20), M-plane(10-10),
R-plane(1-102), N-plane(11-23), V-plane(22-43)
Diameter 2-inch, 4-inch, 6-inch, 8-inch, etc.
Flat Upon request
Surface Finish Fine Ground
Packaging Single piece packaging

We are one of the perfect sapphire ingot manufacturers,we provide sapphire
substrate and sapphire ingot,please feel free to contact us.

Minimum Order: 1 pieces
