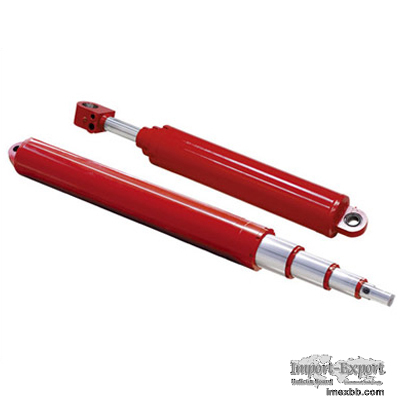

Sanitation Vehicle Cylinders

Brief introduction:

Sanitation vehicle cylinders are widely used in various types of compressed
sanitation garbage truck hydraulic cylinders systems. The series of cylinders
include push plate cylinders, sliding cylinders, scraper cylinders, lift
cylinders, and the like. The push plate cylinder is a double-acting multi-stage
telescopic sleeve hydraulic cylinder.

Product Description

Product Advantage:
Sanitation vehicle cylinders are widely used in various types of compressed
sanitation garbage truck hydraulic systems. The series of cylinders include
push plate cylinders, sliding cylinders, scraper cylinders, lift cylinders, and
the like. The push plate cylinder is a double-acting multi-stage telescopic
sleeve hydraulic cylinder, and the inlet and outlet ports are all arranged at
the rod end. The series of cylinders are reasonable in structure, reliable in
operation, convenient in assembly and disassembly, and easy to maintain.
Special designs can be made according to the user's special needs and technical
parameters.

Technical Specification:
Model Name Pressure MPa Stroke mm Bore/Rod mm
HSG63/35-110X470 Flipping cylinder 16 110 63/35
HSG100/45X800 Lifting cylinder 800 100/45
HSG90/45X485 Lifting cylinder 485 90/45
HSG40/20-400X700 Lock pin cylinder 18 400 40/20
HSG80/40X430 Scraper cylinder 430 80/40
3HSTG150-1935AX1000 Multi-stage double-acting pusher cylinder 16
1935 150/120/90(135/105/75)
4HSTG180X5500 Multi-stage double-acting pusher cylinder 5500
180/150/120/90(165/135/105/75)
