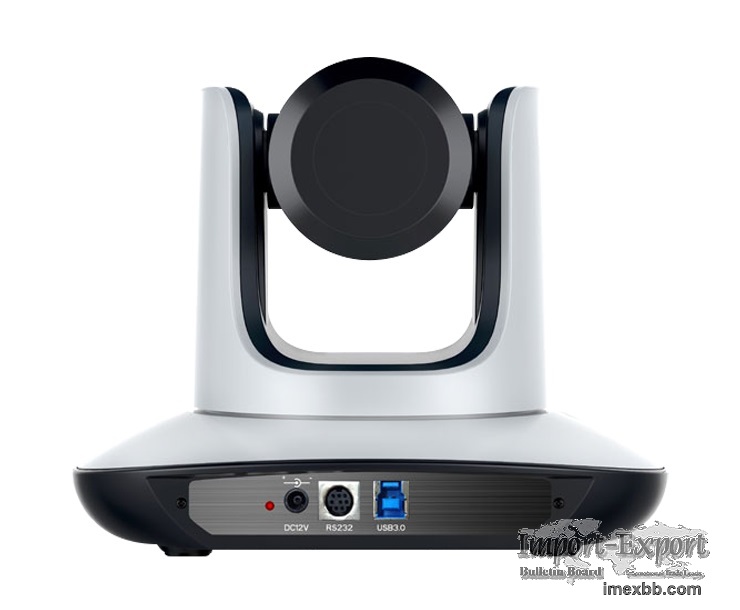

SABER LIGHT

CRYSTAL CLEAR IN FULL HD

Saber Light wide angle conference camera utilizes the highest quality sensors
and a multi-glass lense, the Blade series delivers class-leading optics and
crystal clear lifelike video that makes your video conference feel like you are
sitting together in the same room.

Saber Light (USB 3.0 PTZ camera)
5x + 2x Zoom
5 x Optical + 2 x Digital zoom wide angle conference room camera ensures you
cover every detail in a small to medium-sized conference room, with a
completely lossless image ensuring crisp clear images with every frame.

Saber Light (USB 3.0 PTZ camera)
Saber Light (USB 3.0 PTZ camera)
wide angle video conference camera
Saber Light USB 3.0 PTZ Camera Highlights
3 cables in 1 design: video, control & power can be transited via single USB3.0
cable. (Notice: to achieve stable power supply via USB3.0 cable, we suggest
only use the 3m USB3.0 cable supplied by the factory, and the PC's USB3.0 port
can supply more than 5V 1000mA power; we suggest to connect the power adapter
(supplied by the factory) if the camera is connecting to a USB2.0 port or
USB3.0 extender cable.)

Adopts advanced DSP, 1/2.8 inch 5MP image sensor, and high-quality 5X 90-degree
FOV optical lens, provides fluent and crystal image quality

Fast switching between different video formats: less than 1 second

5x optical zoom + 2X Digital Zoom wide angle conference camera

Fast and accurate focus performance

Easy firmware upgrade

USB3.0 super speed output, USB2.0 compatible

Effective RS232/485 serial control

Up to 128 presets

Compatible with the majority of video conferencing software (UVC protocol
standard)

With powerful functional remote controller

IR transfer/IR pass function: except receiving the camera remote controller
signal, the camera can also receive other codes' IR remote control signal, and
pass these IR control signal to the codec's IR receiver (via VISCA IN port).

Muti-language OSD menu: English, Chinese.
Saber Light USB 3.0 PTZ camera Technical Specification
Mode U3-5FHD6
Video Format USB3.0 1080P60/50/30/25,720P60/50/30/25, 1024x576@30,
960x540@30, 640x360@30, 352x288@30
(YUY2) USB2.0 1024x576@30, 960x540@30, 640x360@30, 352x288@30
Video Port USB3.0, USB2.0
Sensor 1/2.8 inch high-quality CMOS sensor
Lens F3.1～15.5mm(5X), F1.8 ~2.8, Field of viewing: 90°(wide)-20° (tele)
Pan/tilt Rotation Pan:±170°; Tilt:-30°~+90°, support up-side-down
installation
Pan/tilt Speed Pan: 0.1°-120°/s; Tilt: 0.1°-80°/s
Preset 10 via IR remote setting, 128 via VISCA control,  preset accuracy:
0.2°
Control Port RS232/RS485 , USB3.0/USB2.0
Min. Lux 0.01 Lux
White Balance Auto/Manual/AutoTracking/OnePush/Indoor/Outdoor/So , dium
Lamp/Fluorescent Lamp
Focus Auto/Manual
Iris Auto/Manual
Shutter Auto/Manual
WDR Supported
BLC Supported
2D Noise Reduction Supported
3D Noise Reduction Supported
Gamma Setting Supported
Mirror Image Supported
Anti Flicker OFF/ 50Hz/60Hz
Input Voltage 5V 1000Ma (USB3.0) / 12VDC 1A (Power adapter)
Dimension 220mm×190mm×173mm
Net weight 1.25KG（2.8LBS）
Saber Light USB 3.0 PTZ Camera Functions

10 Presets
Ensure a smooth conference by setting up 10 presets covering every person on
the table. Presets can be controlled via the RF remote or via RS232 where you
can set a huge 128 presets.

Dynamic Startup
Dont want the camera to settle in thedefault position on startup? No
problem.Dynamic startup allows you to preset thestartup position, so every time
the camerastarts up it will automatically settle in thatposition,no need to
press any buttons.The perfect solution for lectures

Flexi Control
Our groundbreaking FlexiControl system enhances your onferencing experience,
giving you the ultimate versatility for controlling the camera. FlexiControl
features: - ZoomRoom remote RF Controller supported via ipad/android and
windows with 3 presets. - Visca over RS232 - Our proprietory near end onscreen
app control utilisng 7 presets - AnyAngle RF remote control.

Plug n Play
Connects to your favourite video conference app,cloud service or audio system
via USB. Simply plug the camera into your laptop, PC and Mac. No drivers
needed.

AnyAngle Remote
Familiar with the anxiety of clicking that remote and nothing happens?
Utilising RF technology our new AnyAngle remotes do just that, they work from
any angle, all the time, every time, even if there is an object in the way.

3 Year Warranty
Feel secure knowing your investment is covered well and truly beyond the
industry standard. Thats how confident we are that you will love our products
and that they will last!

Angekis is a professional camera company, we provide Angekis One Touch (All in
one camera), Saber Plus (USB 3.0 IP PTZ Camera), Saber 4K (USB 3.0 IP PTZ
Camera), 5x optical zoom camera, wide angle usb camera, wide angle webcam, wide
angle camera, office video conferencing equipment and etc. We endeavor to
continue to lead the way in USB video conference system. Want to know more?
Please contact us.
