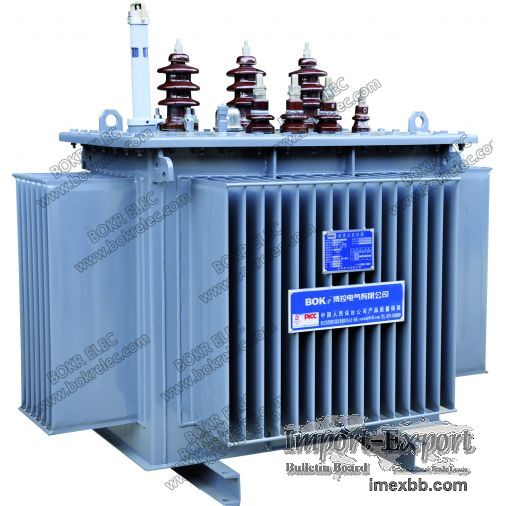

S11-M Power Transformer

S11-M Power Transformer
Product Description
S11-M Electrical Power Distribution Transformer
a new generation of low noise and low loss transformer developed in recent
years. The reel core fully sealed power distribution transformer is a new
generation of low noise and low loss transformer developed in recent years. Its
iron core has no joint, greatly reduces the no-load loss and no-load current,
reduces the no-load current by 60%~80%, the high and low coils are continuously
coiled on the core column, the winding is tight, the concentricity is good, and
the product is enhanced more. Anti-theft performance. The noise decreased by
more than 10 decibels. The temperature rise is low 16-20K. Because of the
continuous winding of iron core (cross section is pure circle), the orientation
loss of silicon steel sheet is fully utilized, and the no-load loss is reduced
by 20%~30%.
The corrugated oil tank is adopted in the transformer, and the oil conservator
is cancelled, the box cover and the box edge are completely welded or fastened
by bolts, thus prolonging the service life of transformer oil.
The product surface is painted, primed and topcoat after degreasing, rust
removing and phosphating. It can meet the special requirements of metallurgy,
petrochemical system and wet dirty area.
