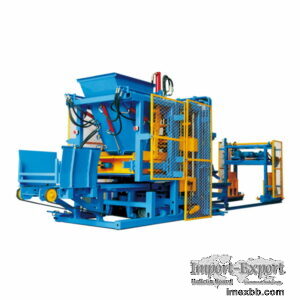

RTQT6 Fully Automatic Concrete Block Production Line

The block making machine can be universally used for the manufacturing of
pavers with and without face mix, kerbstones, hollow blocks and similar
elements.

1、Body.
The cement block making machine is built of strong section steel with 4 guiding
columns with which the mould moves up and down. The seat of mould is equipped
with synchronized connecting rod so that both sides of two end of mould is up
and down synchronously. The mould and mould head linked with their seat through
the special rubber bush.
2、Filler System
The filler system is integrated one which can be moved out or into body when
need. The filler box and hopper is fixed on the support frame. Their height is
adjustable according to the product height. The capacity of base concrete
hopper is approx 680L and outlet is driven by hydraulic cylinder.
The filler box is driven by hydraulic cylinder and the guiding rollers are
inside of U rail. In the filler box there are rotating bars with sticks driven
by a hydraulic motor, which with concrete compulsory movements can make the
filling process fast and wet concrete in the mould well-distributed. As the
final result the products are high quality.
3、Compacting system
The system consists of two twin-shaft heavy-duty special synchronous vibrators
fixed on vibrating table, the vibrator having 2 synchronized unbalances and
generating vertical oscillations. Due to this force the vibrating table, the
pallet and the mould filled with concrete, move up and down. The concrete in
the mould is compacted. The vibrator is Patent product which equipped the
electronic brake system (also Patent). The vibrating frequency and amplitude is
adjusted according to the products and material. There are many shock absorbing
pads between vibrating table and body.
4、Hydraulic station
The hydraulic station consisting of a large-sized oil tank, oil pump, electric
motor and cooling system is integrated together with the valve station beside
of the block machine, which is separated with block machine and linked with
soft heavy duty hydraulic pipes.
The oil pump, valves, cylinders and element are Japanese products such as
Yuken.
