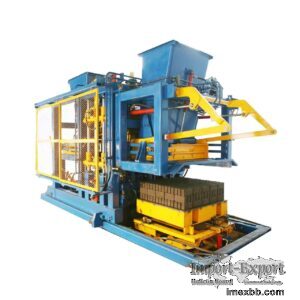

RTQT12 Block Making Machine

RTQT12 Block Making Machine
RTQT12 automatic concrete block making machine can produce standard bricks,
hollow blocks, porous bricks, standard bricks, various roadside stones, thermal
insulation bricks, slope protection and dam protection by replacing the mold.
With a secondary distribution device, it can produce colored pavement bricks,
grass-planting bricks, dock bricks, water conservancy bricks, decorative
bricks, etc.

Choosing this china block machine as production equipment can bring benefits to
users as follows:
1.Suitable for a wide range of raw materials
Adjust various parameters of the equipment (exciting force, pre vibration time,
main vibration time, distribution times, etc.) through computer program and
adopt scientific and reasonable process formula to make the equipment adapt to
different raw materials and produce products with different quality
requirements. In addition to using tailings, fly ash, coal gangue, slag, steel
slag and various industrial wastes can also be used as raw materials.
2.High product quality
Forced mechanical positioning and synchronous steel beam design are adopted to
make the overall dimensions of the product accurate and consistent during
demoulding.Electromechanical hydraulic integration technology is adopted to
make each cycle process of equipment operation consistent, so the stability of
products is very high and the scrap rate is low. The mode of bench mold
resonance is adopted to make the produced products more dense.
3.Low product cost
The use of high-frequency vibrator vibration molding can make the material
particles rotate and vibrate fully, the cement slurry is wrapped evenly, and
the bonding effect between particles is good. Therefore, the block made with
the same amount of cement has high strength. Similarly, for blocks with the
same strength, the amount of cement is less, which can reduce the production
cost.
The whole machine adopts hydraulic action, which saves power consumption and
reduces power consumption by about 5 to 10kW per hour compared with general
mechanical transmission equipment.
As the molding host is independently developed on the basis of German advanced
technology, with a high degree of automation, and the key components adopt
international brand products, the reliability and stability of the equipment
are greatly improved. With this production line, there are fewer operators,
less equipment maintenance costs and high production efficiency, which can
reduce the product cost.
4.Good after-sales service
Provide first-class whole process service to customers: help prepare scheme,
feasibility analysis report, site layout and train operators; Free installation
and debugging, providing reference formula, guiding production on site and
providing enterprise management software; The warranty period is one year, the
long-term affordable supply of molds and spare parts, and the itinerant
engineering service mode make the equipment run in good condition. Promise to
provide 24-hour timely service and lifelong after-sales service.
5.Equipment is widely used
By changing the mold, it is possible to produce a variety of brick shapes and
realize a variety of uses for one device
Introduction for RTS6C block brick making machine with wholesale price

1) STATIONARY BLOCK MACHINE REIT- RT6C
RT6
CAPACITY/PER PALLET : - 6 HOLLOW BLOCKS 400×200×200MM
PALLET SIZE : - 900×700×25MM PVC
WORK AREA : - 820×650MM
PRODUCT HEIGHT : - 50-220MM
OPERATION CYCLE : - 15~30S
VIBRATION MOTOR : - 2×7.5KW
OSCILLATION FORCE : - 100 kN
MACHINE WEIGHT : - ABOUT 7 TON
The manual brick making machine can be universally used for the manufacturing
of pavers with and without face mix, kerb stones, hollow blocks and similar
elements.
BODY
The block machine for sale in usa is built of strong section steel with 2
guiding columns with which the mould moves up and down. The seat of mould is
equipped with synchronized connecting rod so that both sides of two end of
mould is up and down synchronously. The mould and mould head linked with their
seat through the special rubber bush.
FILLER SYSTEM
The filler system is integrated one which can be moved out or into body when
need. The filler box and hopper is fixed on the support frame. Their height is
adjustable according to the product height. The capacity of base concrete
hopper is approx 0.5 m3 and outlet is driven by hydraulic cylinder.
The filler box is driven by hydraulic cylinder and the guiding rollers are
inside of U rail. In the filler box there are rotating bars with sticks driven
by a german made hydraulic motor , which with concrete compulsory movements can
make the filling process fast and wet concrete in the mould well-distributed.
As the final result the products are high quality.
