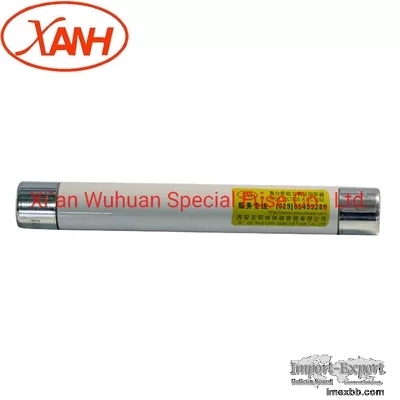

RTE Bayonet Fuses For Mutual Inductor Protection
PRODUCT DESCRIPTION
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor Protection
Product Description
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor Protection
This fuse is suitable for indoor AC 50HZ, rated voltage 3.6kv-40.5kv power
system, as high voltage transformer overload and short circuit protection,
in case of overload and short circuit fault, the fuse can quickly act, and
cut off the power supply to protect the safety of power equipment. This
product has passed the test of national high voltage electrical appliances
quality supervision and testing center, it conforms to the national standard
GB15166.2 and international IEC60282 standard.
1. Model and meaning :Xrnp Series High Voltage H. R. C. Current Limiting
Fuse for Voltage Mutual-Inductor Protection
Model number Rated currrent of fuse wire (A) Dimmesion Breaking
current (kA)
XRNP1-3.6 0.2, 0.3, 0.5, 1, 2, 3.15, 4, 5 Φ25*195
50
XRNP1-7.2
XRNP1-12
XRNP1-24 0.2 , 0.3, 0.5, 1, 2, 3.15 Φ25*324 50
XRNP1-40.5 Φ25*465 31.5
XRNP2-7.2 0.5, 1, 2, 3.15, 6.3, 10, 16 Φ51*192 50
XRNP3-7.2 0.5, 1, 2 , 3.15, 6.3, 10 Φ45*210 50
XRNP-7.2 0.5, 1, 2, 3.15, 6.3, 10, 16 Φ51*210 50
XRNP2-12 Φ51*192 50
XRNP3-12 0.5, 1, 2, 3.15, 6.3, 10 Φ45*210 50
XRNP2-40.5 Φ51*465 50
XRNP3-40.5 0.5, 1, 2, 3.15, 6.3, Φ45*465 31.5
XRNP6-40.5 0.5 Φ40*440 31.5
2. Time & current characteristic curve of XRNP fuse as below :
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor ProtectionXrnp Series High Voltage H. R. C. Current Limiting Fuse
for Voltage Mutual-Inductor Protection3. The size of fuse and its dimension
of installation:
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor Protection
Model number
A B C D H F Φd
XRNP1-3.6, 7.2, 12 240 175 80 257 175 201 Φ11
XRNP1-24 399 304 160 415 270 296
XRNP1-40.5 550 445 240 526 410 436
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor ProtectionXrnp Series High Voltage H. R. C. Current Limiting Fuse
for Voltage Mutual-Inductor Protection
Model number L A B
XRNP1-3.6 XRNP1-7.2 XRNP1-12 195 241 265
XRNP1-24 324 370 394
XRNP1-40.5 465 511 535
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor Protection
Model number L Φd
XRNP2-7.2 XRNP2-12 192 51
XRNP3-7.2 XRNP3-12 210 45
XRNP2-40.5 XRNP-40.5 465 51
XRNP3-40.5 465 45
Xrnp Series High Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-
Inductor ProtectionXrnp Series High Voltage H. R. C. Current Limiting Fuse
for Voltage Mutual-Inductor ProtectionXrnp Series High Voltage H. R. C.
Current Limiting Fuse for Voltage Mutual-Inductor ProtectionXrnp Series High
Voltage H. R. C. Current Limiting Fuse for Voltage Mutual-Inductor
ProtectionXrnp Series High Voltage H. R. C. Current Limiting Fuse for
Voltage Mutual-Inductor ProtectionXrnp Series High Voltage H. R. C. Current
Limiting Fuse for Voltage Mutual-Inductor ProtectionXrnp Series High Voltage
H. R. C. Current Limiting Fuse for Voltage Mutual-Inductor Protection
)
