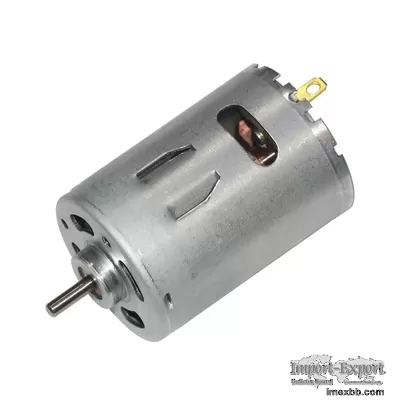

RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor

Product Description
RS 545 12v mini dc motor 24v 6500rpm carbon brush electric motor for copy
machine





Industry-specific Attributes:

Speed (RPM) 6530 RPM
Continuous Current 0.778A
Efficiency 67.5%

Data Details & Shaft Length Can Be customized



RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor 0



Quick Detail:



DC Motor

High Efficiency 67.5%

Output 12.6W

Voltage Operating Range 9V~24V

Speed 2000~10000 RPM

Continuous Current 0.25A

Stall Torque 400~1120g.cm

Threaded Hole 2-M3 x 0.5

Customize Data Details & Shaft Length

Typical Application For Copy Machine,Household Fan,Power Tools,Motorized
Toy,Automotive Product,etc.





Specification



Motor Type 545 DC Motor
Size Diam 36mm x H 50mm
Voltage 24V
Speed 6530 RPM
Torque 188g.cm
Stall Torque 1120g.cm
Continuous Current 0.778A
Output Power 12.6W
Efficiency 67.5%
Working Temperature -10℃ ～ +70℃(25℃best)


RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor 1



Features of 545 Carbon Brush DC Motor



The motor’s efficiency of 67.5% is a significant advantage in terms of
energy conservation and environmental protection. The output power of 12.6W
allows it to drive various types of loads effectively, while the voltage
operating range from 9V to 24V provides greater flexibility in use. The
speed of 2000 RPM allows it to operate at high speeds while maintaining
stability. The continuous current of 0.25A ensures that the motor does not
overheat during long-term use. The stall torque range of 400 to 1120g.cm
allows it to generate sufficient torque to drive different loads
effectively. The threaded hole of 2-M3 x 0.5 allows for easy installation
and integration into various devices. Customization options for data details
and shaft lengths provide further flexibility in tailoring the motor to
specific applications.

The typical applications mentioned include copy machines, household fans,
power tools, motorized toys, automotive products, and so on. These
applications require different types of motors with specific features to
meet their specific requirements. The 545 carbon brush DC motor provides a
reliable and efficient solution for these applications, with its ability to
generate sufficient torque and speed to drive different types of loads
effectively while maintaining stability and durability for long-term use.





Micro DC Motors

Φ10mm: FF-M10,FF-M20,FF-M30

Φ12mm: FF-N10,FF-N20,FF-N30

Φ20mm: FF130,FF180

Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370

RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor
2Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395

Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565

Φ42mm: RS750,RS755,RS770,RS775



RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor 3











Application:

The micro dc motor are widely used in various fields, including power tools,
motorized toys, automotive products, etc.





Packaging

Packing:Foam Box / EPE + Export Carton



RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor 4





Delivery:

Shipping Time:3 working days for samples.10-20 working days for bulk order.

Shipping Channel:We can check the shipping fee and channel with our agents
if needed.

RS 545 12V Mini Brush DC Motor 24V 6500rpm Carbon Brush Electric Motor 5





FAQ



Q1: Are you a manufacturer or a trade company? Which kind of motor do you
produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce
the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor
Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage
Motor,Coreless Motor, etc.


Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize
Logo or packing by your request, we can also guarantee you a worry-free
after sales.


Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can
be 2000 pieces or above.


Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2
weeks. As for the mass production, it will depend on the quantity of your
order.


Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the
payment<=10000USD,100% in advance. If the payment>10000USD,30%-50% T/T in
advance, balance before the shipment.


Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK
UPS for samples and the small quantity, because it is safe, fast and cheap.
We arrange the shipment by sea or air for the large quantity. And the DHL,
FedEx,TNT, EMS are all available, if you need to ship by other methods, pls
contact us in advance. As for the delivery time, usually 5-10 days;The
specific will vary with the season number of customers orders.


Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by
your request.


Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples,
our professional design team can design the product according to your
requirements.


Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of
life,noise,voltage, shaft,etc,price also vary with the annual quantities,so
it is difficult for us to provide the price list. If you share your detailed
requirements and annual quantities,we will see what we can offer.
