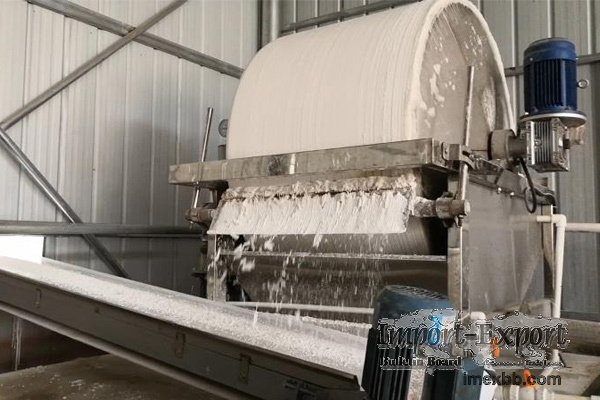

Rotary Vacuum Filter

cassava dewatering machinecassava machinecassava processing machine
Features of Rotary Vacuum Filter
Processing Capacity: 0.2-0.3Tons/h/m2
Application Scope: Cassava or potato starch dewatering
Product Introduction: Rotary vacuum filter, rotary vacuum dehydrator, cassava
dewatering machine, cassava starch dewatering machine for cassava starch
processing

Product Application of Rotary Vacuum Filter
Widely used for the dehydration in starch, modified starch, medicine, food,
chemical industry etc.
Product Advantage of Rotary Vacuum Filter
1. The equipment is stable, compact, highly efficient with a low energy
consumption;
2. Special designed stainless steel screen cloth and support-gauze ensure a
higher pass rate and efficiency;
3. Hollow structure of the dehydration drum ensuring uniform stability and
lower moisture content of dehydrated materials can save energy consumption of
the drying section;
4. Using elastic scraper can get high starch detachment rate.
5. Using stepless speed regulation for Rotary drum can adjust the processing
capacity conveniently according to the different properties of starch.
6. The strong and stable frame structure, all stainless steel.
7. The bottom of the bearing is connected with a unique oil pan, ensuring
higher hygiene requirements.
8. The integral structure of vacuum tank and vacuum pump can save installation
space and time.
9. Adopting the suction filter mode, relative to other dehydration ways, can
improve the purity degree of starch, and also with no dissection phenomenon.
10. Continuously failure-free operation ensures the continuity of the whole
system production.
11. No need for artificial discharging, reduce the labor intensity.
Technical Parameters of Rotary Vacuum Filter
Model number GD-TS-03 GD-TS-05 GD-TS-06 GD-TS-08
Filtration area 3m2 5m2 6m2 8m2
Vacuum degree >-0.099 >-0.099 >-0.099 >-0.099
Final moisture content ≤40% ≤40% ≤40% ≤40%
Feed concentration 10-17BE° 10-17BE° 10-17BE° 10-
17BE°
Output 0.2-0.3t/h/m2 0.2-0.3t/h/m2 0.2-0.3t/h/m2 0.2-0.3t/h/m2
Power 7kw 13.2kw 20.7kw 24.2kw
Dimension(L×W×H)(mm) 1500×1400×1600 1500×1800×1600
1800×1900×1900 1800×2200×1900

Nanyang Goodway Machinery & Equipment Co., Ltd. is one of professional rotary
vacuum filter manufacturers, we provide casdewatering press for sale, potato
starch machine, potato powder making machine and etc. Want to know more? Please
contact us.
