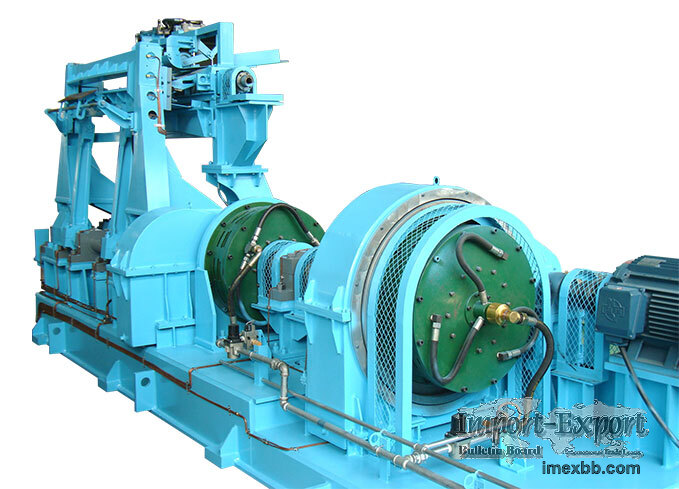

Rotary Shear for Annealing and Galvanizing Line

In order to ensure that the tearing surface of the strip is smooth, it is
necessary to ensure that the upper and lower knife planes are relatively
parallel as much as possible. The rotary shear for annealing and galvanized
lines produced by BOYA have undergone precise processing and strict debugging
before leaving the factory to ensure that the assembly accuracy is at a high
level.

Application Scope of Rotary Shear for Annealing and Galvanizing Line

Material Strip thickness Strip width Tensile strength Shear
rate
High-strength steel and ordinary steel 0.1-3.0mm 500-2300mm
≤1600MPa ≤600m/min

Structure Advantage of rotary metal shear for Annealing and Galvanizing Line

The single-side shearing knife box of the disc shears is for one use and one
preparation, and can be quickly switched through the rotary mode, so that the
unit can quickly change the tool without stopping the machine.

The disc cutter is equipped with a tool change and maintenance platform, which
can realize online tool change and maintenance of the spare tool box.

The disc knife adopts the end face grinding method, the hydraulic nut is
locked, the upper knife adopts the front rigid positioning, and the lower knife
adopts the rear rigid positioning, which can greatly improve the convenience of
equipment operation and maintenance and reduce the ineffective consumption of
spare parts.

Equipped with cutter cleaning device and scraper mechanism, it can guarantee
and prolong the service life of the disc blade.

Electromechanical and hydraulic control integrated products, equipped with
reliable Siemens control system and optimized process adjustment template, can
effectively ensure stable product quality.

As one of the most professional fine blanking press manufacturers, we provide
sheet shearing machine, Steel plant finishing line, rotary shear for sale, mini
rotary metal shear, mini rotary shear, rotary sheet metal shear, throatless
rotary shear, sheet metal coil processing and etc. Want to know more, contact
us.
