Rosemount 8800 Flanged Vortex Flow Meter

Rosemount flow meter supplier

PRODUCT DESCRIPTION
Rosemount 8800 Flanged Vortex Flow Meter offers world-class reliability with a
gasket-free, non-clog meter body that eliminates potential leak points,
resulting in maximum process availability and fewer unscheduled shutdowns. The
8800 Flanged Vortex is ideal for all applications from general purpose to the
most demanding application. The unique design of the 8800 features isolated
sensors that eliminate the need to break process seals for flow and temperature
sensor replacement.

Specifications of Rosemount 8800 Flanged Vortex Flow Meter
Flow Meter Accuracy:
± 0.70% of mass flow rate in water using 8800 MultiVariable (MTA/MCA option)
± 2% of mass flow in steam using 8800 MultiVariable (MTA/MCA option)
± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable
(MPA option)
± 1.2% of rate at 150 psia in steam using 8800 MultiVariable (MCA option)
± 1.3% of rate at 300 psia in steam using 8800 MultiVariable (MCA option)
± 1.6% of rate at 800 psia in steam using 8800 MultiVariable (MCA option)
± 2.5% of rate at 2,000 psia in steam using 8800 MultiVariable (MCA option)
± 0.65% of volumetric rate for liquids (uncompensated)
± 1% of volumetric rate for gas and steam (uncompensated)
Turndown:  38:1
Output:
4-20 mA with HART® 5 or 7
4-20 mA with HART® 5 or 7 and scalable pulse output
FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link    Active
Scheduler function block, 1 Integrator function block, and 1 PID  function
block
Modbus RS-485 with device status and 4 variables
Wetted Material:
Stainless Steel; 316 / 316L and CF3M
Nickel Alloy; C-22 and CW2M
High Temp Carbon Steel; A105 and WCB
Low Temp Carbon Steel; LF2 and LCC
Duplex; UNS S32760 and 6A
Consult factory for other wetted material
Flange Options:
ANSI Class 150 to 1500
DIN PN 10 to PN 160
JIS 10K to 40K
Flanges are available in a variety of facings
Consult factory for additional flange ratings
Operating Temperatures:
-330°F to 800°F (-200°C to 427°C)
Line Size:
1/2" - 12" (15 - 300mm)

Want to know more product details or quality certification? Click here for the
best offer!

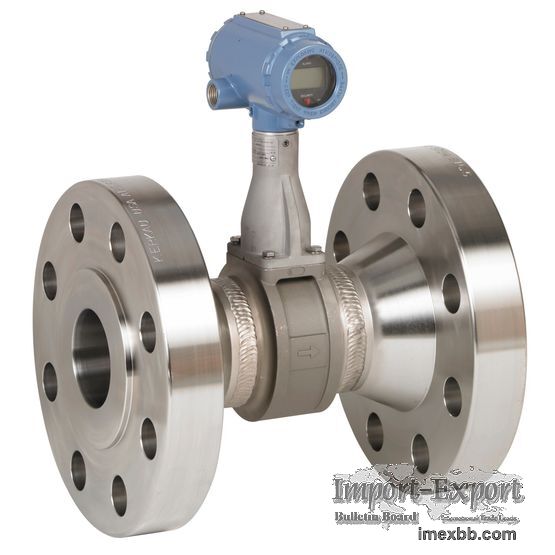

Rosemount 8800 Flanged Vortex Flow Meter
Enlarge Click to Enlarge
