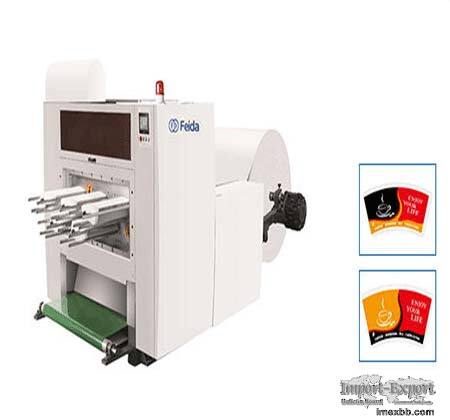

Roll Die Punching Machine

Roll Die Punching Machine
Paper die punching machine based on international advanced technology, it's
widely used in paper cup fan products. It adopts a micro-computer, human-
computer control interface, servo positioning, alternating current frequency
converter, photoelectric correcting deviation system, centralized oil
lubrication.

The equipment is suitable for the paper thickness of 150-350 gsm roll paper for
rapid and precise punching, collecting, and stripping at the same time, can be
applied to paper cups, paper bowls, paper plates etc.

Highlights of Roll Die Punching Machine

01
Stronger
It adopts a micro-computer, human-computer control interface, direct connection
servo positioning which make higher accuracy, and we make the wallboard, base
much stronger than others. It guarantees that when the machine runs up to 380
strokes/min without any shaking.

02
Lubrication System
Adopting forced lubrication system to ensure main driving oil supply regularly
and reduce friction and prolong the machine life, you could set it to lubricate
10 seconds every 6 minutes.

03
Die-cutting Force
The die-cutting force is provided by a 5.5KW inverter motor. It is not only
power-saving, but also can realize the step-less speed adjustment, especially
when coordinate with the extra-large flywheel, which makes the die-cutting
force strong and steady, and the electricity can be further reduced.
We adopt two swing arm cams which are much easier to adjust and operate when
you change the punching mould, and it has higher stable pressure and high
performance.

04
The Coordination Between Stepping Motor And Photoelectric Eye
The coordination between the stepping motor and the photoelectric eye which can
identify colours assures the perfect fit of the die-cutting position and
figures.

05
Electrical Cabinet
Frequency converter controls the main motor, with features of low energy and
high efficiency. PLC and HMI: screen display the running data and status, all
of the parameter can be set through the screen. Electrical Control System:
adopts microcomputer control, encoder angle detect and control, photoelectric
chase and detect, achieving from paper feeding, convey, die punching and
delivering process automatic control and detect. Automatic Tension Control can
control the paper tension automatically.

06
Feeding Unit
Adopts chain type pneumatic roller unwind, tension controls unwind speed, and
that's hydraulic, it could support at 1.5T paper. Max roll paper diameter is
1.5m.

07
Die Cutting Mold
We adopt swiss material that could be used for at least 400 million strokes,
and if the mould can't cut well, you could sharpen the blade by a flat grinding
machine, it could be sharpened 4-5times.
Each punching mould in one cavity is divided into 4 pieces which can be
adjusted easily.

Now the automatic die punching machine price is affordable, if you have needs,
please contact us.

As one of packing machine suppliers, we will do our best to provide more high
quality products for sale, anything you need, please leave us a message.

Minimum Order: 1 sets

Click to Enlarge
