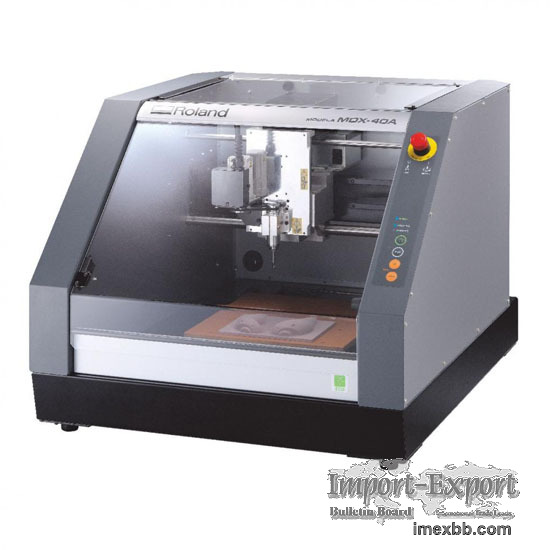

ROLAND Modela MDX-40A - WORLDPRINTHEAD

Product Description
3D Milling Machine

Acceptable material : Plastics (ABS; Delrin/Acetal; Nylon; Acrylic);
tooling board; wood; and modeling wax (metal not supported)

X; Y; and Z operation strokes : 12 (X) x 12 (Y) x 4.13 (Z) in. [305 (X) x
305 (Y) x 105 (Z) mm]

Distance from collet tip to table : Maximum 4.84 in. [123 mm]

Spindle rotation : 4500 to 15000 rpm

Main Unit

Weight

65 kg (144 lb)

Power Consumption

Approx. 210 W

Features

Acceptable materials : Resins such as chemical wood, modelling wax, wood
(metal not supported)
X, Y, and Z strokes : 305 (X) x 305 (Y) x 105 (Z) mm
Distance from spindle tip to table : Max. 123 mm (4.84 in.)
XYZ-axis motor : Stepping motor
Feed rate : XY-axis: 0.1 to 50 mm/sec.; Z-axis: 0.1 to 30 mm/sec.
Software resolution : NC-code: 0.001mm/step; RML-1: 0.01 mm/step
Spindle motor : Brushless DC motor, Maximum 100 W
Spindle rotation : 4500 to 15000 rpm
Tool chuck : Collet
Operating Temperature

Brushless DC motor, Maximum 100 W

Max. Table Load Weight

4 kg (8.8 lb) Loadable workpiece weight

Interface

USB*1 (compliant with Universal Serial Bus Specification Revision 1.1)

Table Size

305 (W) x 305 (D) mm

Dimension (WxDxH)

669 (W) x 760 (D) x 554 (H) mm [26.4 (W) x 30 (D) x 21.9 (H) in.]

Minimum Order: 1 pieces
